Liquid Level Sensor "LS03 Series" | Ensuring Chemical Resistance and Heat Resistance
We also support customization with various cable and connector options!

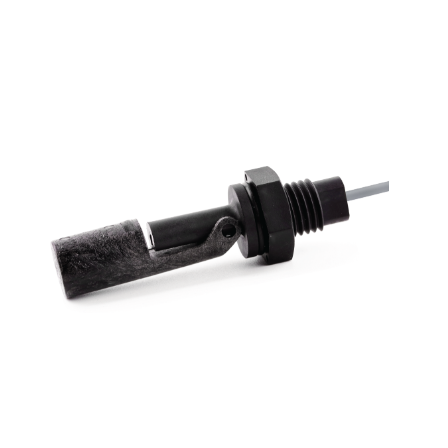

The "LS03 Series" is a compact single-stage, horizontally mounted liquid level sensor designed to achieve reliable liquid detection and control for a wide range of applications. It employs magnetic float operation and integrated reed switch technology, demonstrating accurate switching performance from low to high power systems. The contact configuration supports Form A, Form B, and Form C, with ratings of up to 100W, 400VDC, and 1.0A. It is made from durable PA or PP materials, providing heat resistance up to 150°C. 【Features】 ■ Horizontal mounting design compatible with side insertion installation for tanks and reservoirs ■ Multiple contact configurations to accommodate flexible switching configurations ■ Supports high power applications with ratings of up to 100W, 400VDC, and 1.0A ■ High temperature resistance up to 150°C for harsh environments ■ Made of PA or PP for chemical resistance and heat resistance ■ High reliability operation with magnetic float actuation using integrated reed switches *For more details, please download the PDF (English version) or feel free to contact us.
basic information
For more details, please download the PDF (English version) or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
**Applications** - Automotive Systems: Monitoring of coolant and fuel levels - Home Appliances: Water level detection in dishwashers and washing machines - HVAC/R Systems: Drain water level control and overflow prevention - Industrial Control: Monitoring of tank levels and pump activation - Medical Devices: Liquid detection in sterilization equipment and diagnostic devices - Testing and Measurement Equipment: Liquid level detection in laboratory measurement instruments *For more details, please download the PDF (English version) or feel free to contact us.*
