Case Study - New Double Door Ring Production Line
● Multi-Coupling System By arranging multiple connectors (fluid connectors and electrical connectors) on a single plate, it allows for collective attachment and detachment, contributing to efficiency! ● Various and Abundant Product Lineup A rich product lineup tailored to the usage environment (temperature, pressure) and specifications (fluid, electrical)! ● Customized Products Customize the optimal products for your equipment from the plate according to specifications! ● High Durability and Long Lifespan Achieves durability that allows for one million attachments and detachments (regular maintenance is required). ● Maintainable Couplings The couplings, which are component parts, can be replaced by the user using a maintenance kit (set of consumable parts). By replacing the consumable parts in the maintenance kit, performance can be restored to that of new products. ● Selection of Non-Spill Structure (No Drip Coupling) Auto-Couplings Non-spill structure couplings can be adopted according to your desired specifications. The flat face structure prevents liquid drips, air entrapment, and foreign matter contamination during attachment and detachment. It ensures the safety of operators and keeps the surrounding environment clean.
basic information
● Customized Products ・Manual Type: Manual attachment and detachment ・Automatic Type: Automatic attachment and detachment ● Components for Customized Solutions ・Electrical Connectors: Suitable for various applications from high current REA/REP to data bus and from power supply to thermocouple ・Fluid Couplings: Modular products based on RBE's proven technology, RMA/RMP ・Hydraulic Couplings: Maintains working environment by preventing air ingress and liquid leakage in the circuit, SPH ・Hydraulic Couplings (High-Pressure Fluid Compatible): HPX/MA designed for applications with significant pressure fluctuations, harsh working environments, pulsations, and severe vibrations ・Hydraulic Couplings (High-Speed Fluid Compatible): HVA designed to ensure maximum flow in limited pathways and accommodate fluids flowing at high speeds *Please refer to detailed information.
Price range
Delivery Time
Model number/Brand name
Stobri fluid connector multi-connector
Applications/Examples of results

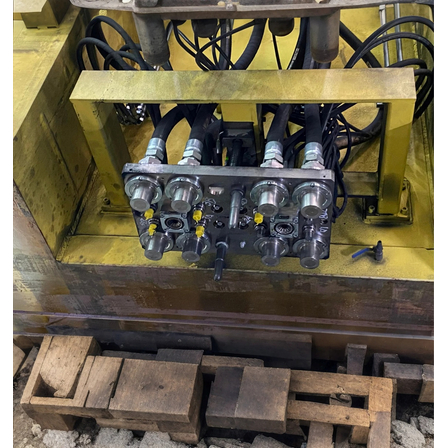

User's situation at the time of hiring Building a new double-door ring production line ➔ The number of circuits for the mold is 1.5 times Goals Utilizing the existing cooperative relationship and experience with Stobler, consolidate all new circuits onto a single plate to maximize space. Requirements • Compatibility of the new mold with existing mold designs • Seamless connection of new equipment with old molds • Ensuring adaptability and flexibility in the production process ● Flexible Production Fully adapting to old molds and old equipment while meeting the connection of more circuits in the new line. ● High Integration Consolidating all 36 couplings and related functions onto a single main plate. This saves space, simplifies the structure, improves system stability, and reduces failure rates. ● Precision Design Accurate mechanical calculations and simulation analyses effectively distribute stress on connecting parts, reducing localized wear and improving lifespan.
