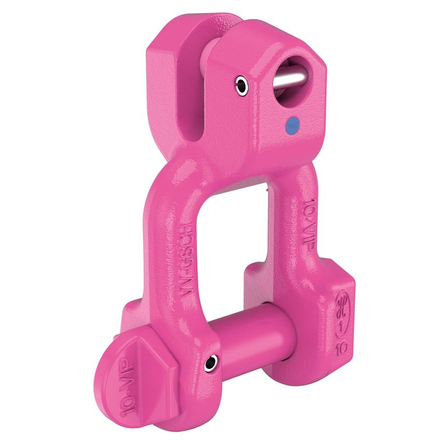

Connection and adjustment fitting VIP High Dynamic Shackle VV-GSCH
The pin rotates 360 degrees at all times! It is used to connect the chain and the fittings.
The VIP High Dynamic Shackle VV-GSCH is used to connect chains and fittings. The pin always rotates 360 degrees, preventing uneven wear. In the ever-evolving work environment, the products used are constantly required to meet high standards of "safety," "durability," and "usability." RUD, which has been pursuing further challenges and safety since its founding, will continue to evolve and accelerate in the work environment that is advancing rapidly. 【Features】 ○ The pin always rotates 360 degrees, preventing uneven wear ○ Chain nominal diameter: 6 to 22 mm ○ Basic working load: 1.2 to 16.0 tons ○ Weight: 0.15 to 6.7 kg For more details, please contact us or download the catalog.
basic information
【Lineup】 ○VV-GSCH 6: Chain nominal diameter 6mm, basic working load 1.2 tons, weight 0.15kg ○VV-GSCH 8: Chain nominal diameter 8mm, basic working load 2.0 tons, weight 0.26kg ○VV-GSCH 10: Chain nominal diameter 10mm, basic working load 3.2 tons, weight 0.65kg ○VV-GSCH 13: Chain nominal diameter 13mm, basic working load 5.2 tons, weight 1.35kg ○VV-GSCH 16: Chain nominal diameter 16mm, basic working load 8.0 tons, weight 2.5kg ○VV-GSCH 20: Chain nominal diameter 20mm, basic working load 12.8 tons, weight 3.9kg ○VV-GSCH 22: Chain nominal diameter 22mm, basic working load 16.0 tons, weight 6.7kg ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
For more details, please contact us or download the catalog.
