Lifting Point Bolt Type "WBPG"
Sealed bearings for super heavy loads! Introducing the heavy rotation ring.

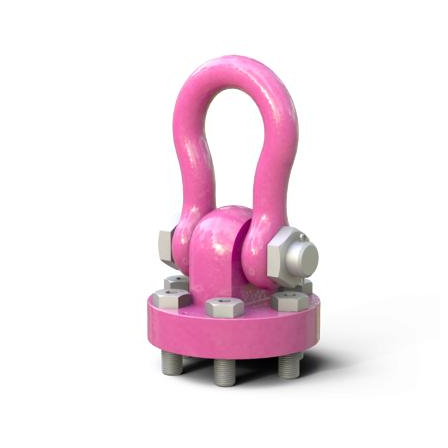

The "WBPG (Heavy Rotation Ring)" is a lifting point designed for ultra-large applications that can rotate 360°. It comes with standard bolts from Rudd that feature a unique corrosion-resistant surface treatment (CORRUD-DT). Additionally, the bolt head is clearly engraved with the company name, screw size, manufacturing number, and strength class. 【Features】 ■ For ultra-large applications ■ Basic working load: up to 250t ■ 360° rotation ■ Suspension ring is movable 180° ■ The suspension ring part is detachable with a shackle shape *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Lineup】 ■WBPG 85t/400mm 6×M48 ■WBPG 100t/400mm 6×M48 ■WBPG 120t/570mm 6×M48 ■WBPG 200t/650mm 10×M48 ■WBPG 250t/730mm 12×M48 *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■ For super large applications *For more details, please refer to the PDF document or feel free to contact us.
