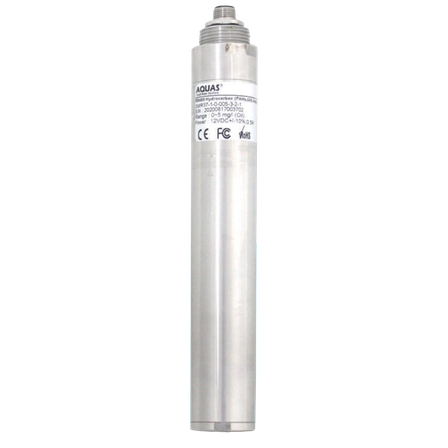

AQUAS Oil Concentration Meter SMR-37
High-precision measurements are possible with the fluorescence measurement principle! Models can be changed to accommodate different types of oils, such as refined oil and crude oil.
The SMR-37 can measure oil concentration without the need for reagents. It allows for continuous monitoring of oil concentration while keeping running costs low. We can suggest models based on the type of oil. 【Features】 ■ The auto-cleaning wiper mounted on the glass surface reduces maintenance frequency and lowers costs. ■ With an IP68 waterproof specification, it can be directly installed on-site without the need for underwater protection or cabinets. ■ Equipped with RS485 digital communication. ■ IECEx/ATEX Ex ia IIB T5 Ga explosion-proof certification. ■ Adopts a fluorescent method, enabling high-precision measurements (±5%). Please download the catalog or feel free to contact us.
basic information
Power Supply: DC5～12V, 300mA Output Signal: RS485, 4-20mA (optional) Measurement Range: Refined Oil (0～150mg/L), Crude Oil (0～1500μg/L) *Measurement range varies by model. Accuracy: ±5% (Reproducibility: ±3%) Housing Material: SS316L, Titanium External Dimensions: Φ34 × 22mm Weight: Approximately 500g (SS316L), Approximately 400g (Titanium)
Price range
Delivery Time
Applications/Examples of results
Drinking water, plant, wastewater, etc.
