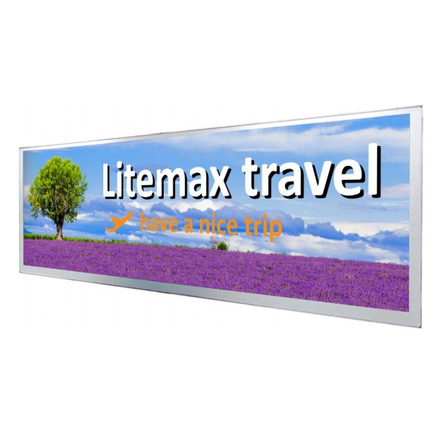

LITEMAX High Brightness LCD Monitor SSF/SSH1945-M
19.4-inch high-brightness resized display monitor for signage, energy-saving, ultra-wide monitor (screen length is more than twice the vertical width)
■19.4” Resizing LCD, 1000 nits LED backlight, MaxRGB, 1920x536 ■Adopts a high-brightness (1,000 NIT) LCD panel that is visible even in sunlight ■Uses ultra-long-life LED backlight (MTBF: 100,000 hours) ■MaxRGB (NTSC 92%) ■Low power consumption 21.5W, 23W (with AD board) ■Power supply DC 12V ■Operating temperature 0 to 50℃
basic information
Specifications - Screen size: 19.4 inches - Display area: Horizontal 476.06 x Vertical 132.9 mm - LCD panel brightness: 1,000 cd/m² - Display resolution: 1024 x 768 (XGA) - Aspect ratio: 16:4.5 - Contrast ratio: 6000:1 - Viewing angle: Horizontal 178 degrees / Vertical 178 degrees - Power supply: DC 12V - Dimensions (WxHxD): 497 x 149.8 x 13.96 mm - Weight: 0.92 kg - Operating temperature: 0 to 50°C
Price information
Open price
Price range
P3
Delivery Time
OTHER
The delivery time may vary depending on the quantity, so please feel free to contact us.
Model number/Brand name
LITEMAX Spanpixel SSF/SSH1945-M
Applications/Examples of results
Digital signage, public transport advertising, public information terminals, vessels, military displays.
Line up（3）
| Model number | overview |
|---|---|
| SSF1945-MNW-A01 | 19.4 inches, 1000 cd/m², 1920*536, MaxRGB, LID19C, 10 in 1, V1 |
| SSH1945-MNW-Q01 | 19.4 inches, 1000 cd/m2, 1920*536, MaxRGB, AD8891P w/LID, O/B, DC12V, 10in1, V1 |
| Option | ADAPTER.12V.5A.60W.G99-CAD060F-N001,DC Plug,2.1*5.5mm,P |
