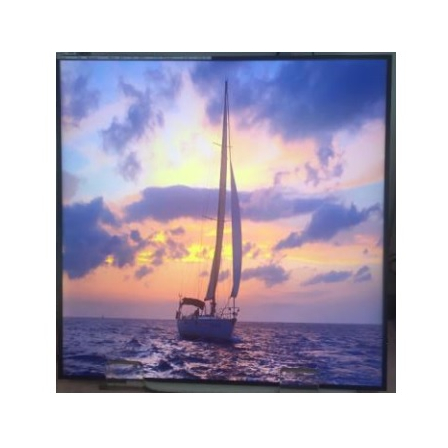

LITEMAX High Brightness Monitor SSF/SSH2653-Y
26.5-inch, high-brightness square display monitor for signage, energy-saving, visible even in sunlight.
■26.5” high brightness TFT LCD, 500 cd/m² LED backlight, 1920x1920 ■Adopts ultra-long life LED backlight (up to 100,000 hours) ■Achieves high brightness of 500 cd/m² for the backlight ■Uses a high brightness (500 cd/m²) LCD panel that is visible even in sunlight ■Screen aspect ratio 1:1 ■Narrow bezel design, display resolution 1920x1920 ■Low power consumption ■Power supply DC 12V ■Operating temperature 0 to 50℃
basic information
Specifications - Screen size: 26.5 inches - Display area: Horizontal 475.776 x Vertical 475.776 mm - LCD panel brightness: 500 cd/m² - Display resolution: 1920x1920 - Screen aspect ratio: 1:1 - Contrast ratio: 1200:1 - Viewing angle: Horizontal 178 degrees / Vertical 178 degrees - Power supply: DC 12V - Power consumption: 44W, 51W (with AD board) - Dimensions (WxHxD): 491.8x491.8 x 13.5mm - Weight: 2.5kg - Frame width (U/B/L/R): 8/8/8/8 mm - Operating temperature: 0 to 50℃
Price information
Open price
Price range
P3
Delivery Time
OTHER
The delivery time may vary depending on the quantity, so please feel free to contact us.
Model number/Brand name
LITEMAX Squarepixel SSF/SSH2653-Y
Applications/Examples of results
Digital signage, public transport advertising, public information terminals, ships, military displays.
Line up（3）
| Model number | overview |
|---|---|
| SSF2653-YNN-A01 | 26.5 inches, high brightness 500 nits, resolution 1920x1920, LID22C, 3in1 |
| SSH2653-YNN-M01 | 26.5 inches, high brightness 500 nits, resolution 1920x1920, LID22C, power DC12V, 3in1 |
| Option | ADAPTER.12V.10A.120W.G99-CAD120F-N002.POWER DIN,P |
