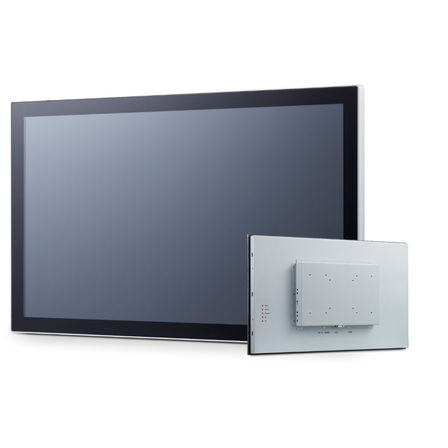

32" Industrial Open Frame Touch Display OM-320
ADLINK, FHD, front waterproof IP65, HDMI / VGA / DVI / DP, optimal for embedded applications due to open frame.
【ADLINK OM-320 Features】 ■32" Full HD TFT LCD ■Projected capacitive 10-point multi-touch panel ■Image correction (gamma correction, saturation, brightness, contrast, color balance) ■Wide viewing angle (usable in both portrait and landscape orientations) ■IP65 front waterproof/dustproof ■Input signals: HDMI, VGA, DVI, DP (OM-320/430) ■Slim, lightweight design ■VESA (75mm, 100mm), panel, and wall mountable ■Backlight lifespan (MTBF): 50,000 hours (standard)
basic information
Specifications - Panel: 32-inch LCD - Physical Resolution: Full HD (1920x1080) - LCD Panel Brightness: 400cd/m2 - Touch Panel: Projected capacitive multi-touch (10 points), fingerprint-resistant coating - Bonding: Air bonding - Input Connectors: HDMI x 1, VGA x 1, DVI x 1, DP 1.2 x 1, USB x 1 (for touch panel) - Waterproof Rating: IP65 - Viewing Angle (U/D/R/L): 89/89/89/89 - Input Power/Power Consumption: DC 24V (max 5A) / 38.4W - Vibration: 1.5G (random 10-200Hz) - Mounting Method: VESA (75mm, 100mm), panel, wall mount - Operating Temperature: 0–40℃ - Dimensions (WxHxD)/Weight: 757.6 x 393.8 x 74.1mm / 14.2 Kg - Warranty Period: 1 year
Price information
Open price
Delivery Time
Model number/Brand name
ADLINK OM-320
Applications/Examples of results
Stable operation is possible in public facilities, financial terminals, the medical field, embedded systems, and FA applications, among others.
Line up（4）
| Model number | overview |
|---|---|
| OM-238 | 23.8-inch 200cd/m2 Full HD LCD monitor, projected capacitive multi-touch panel |
| OM-270 | 27-inch 240cd/m2 Full HD LCD monitor, projected capacitive multi-touch panel |
| OM-320 | 32-inch 400cd/m2 Full HD LCD monitor, projected capacitive multi-touch panel |
| OM-430 | 43-inch 400cd/m2 Full HD LCD monitor, projected capacitive multi-touch panel |
