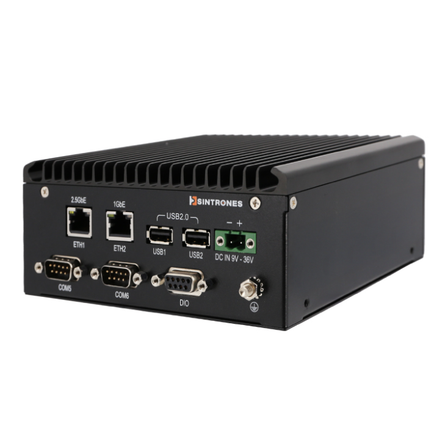

Ryzen R2312 equipped embedded PC SBOX-2624(P)
SINTRONES, equipped with AMD Ryzen Embedded R2312 CPU, extended temperature support, fanless embedded PC.
**SINTRONES SBOX-2624(P) Features** - Dimensions: 150mm (W) x 65mm (H) x 150mm (D), approximately 1.46 liters - AMD Ryzen Embedded R2312 2C/4T CPU, fanless operation - 1 x SO-DIMM DDR4-2400 (up to 32GB) - 4K resolution support, 2 display outputs (2 HDMI) - 1 x M.2 3042/3052 Key B (supports USB 3.2, WWAN, Dual SIM) expansion slot - 1 x M.2 2230 Key E (supports PCIe/USB 2.0, Wi-Fi/Bluetooth) expansion slot - 1 x M.2 2280 Key M (supports NVMe/SATA SSD) - 1 x 2.5GbE (RJ45), 4 x GbE (RJ45), 2 x USB 3.2 Gen 2 (10Gbps), 2 x USB 2.0, 2 x RS-232/422/485, 2 x RS-232 - Operating temperature range: -30 to 60°C (with airflow) - OS: Windows 10, Windows 11, Ubuntu 20.04 - Railway standard EN50155 certified
basic information
Specifications ■CPU: AMD Ryzen Embedded R2312 2C/4T CPU ■Memory: 1 x SO-DIMM DDR4-2400 (up to 32GB) ■Graphics: Integrated graphics AMD Radeon ■Storage: 1 x M.2 2280 Key M (supports NVMe/SATA SSD) ■I/O Connectors: 1 x 2.5GbE (RJ45), 4 x GbE (RJ45), 2 x USB 3.2 Gen 2 (10Gbps), 2 x USB 2.0, 2 x RS-232/422/485, 2 x RS-232, 4 x DI (9-36VDC), 4 x DO (5V, 100mA) ■Weight: 1.5Kg ■Operating Temperature: -30 to 60℃ ■Power Supply: DC 9 to 36V ■Mounting: Wall-mount installation ■Certifications: CE, FCC Class A, UKCA, EN 50155
Price information
Open price
Delivery Time
Model number/Brand name
SINTRONES SBOX-2624(P)
Applications/Examples of results
For vehicle-mounted, machine, factory, and building automation/monitoring systems.
Line up（2）
| Model number | overview |
|---|---|
| SBOX-2624 | AMD Ryzen Embedded R2312 w/ 2x HDMI / 1 x 2.5GbE, 1 x GbE / 6 x COM / DC-IN 9-36V Embedded Computer |
| SBOX-2624P | AMD Ryzen Embedded R2312 w/ 2x HDMI / 1 x 2.5GbE, 4 x GbE PoE / 4 x COM / DC-IN 9-36V Embedded Computer |
