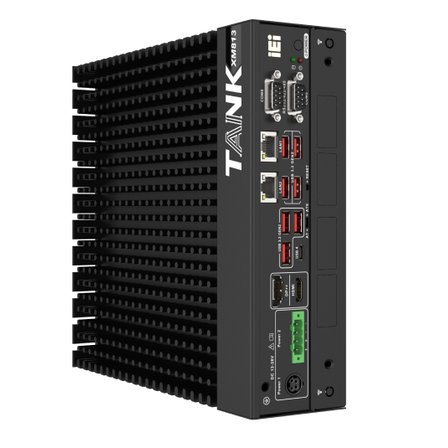

Core Ultra equipped industrial embedded PC TANK-XM813
IEI, for industrial embedded systems, compatible with Core Ultra 9/Ultra 7/Ultra 5 series, supports fanless operation.
【IEI TANK-XM813 Features】 ■ Dimensions: 230.6mm (W) × 68.7mm (H) × 255mm (D), approximately 4.04 liters ■ Compatible with Intel Core Ultra 9/Ultra 7/Ultra 5 series, fanless operation ■ 2×SO-DIMM DDR5 5600 (16GB pre-installed, supports up to 96GB) ■ Supports dual display, 1 x DP++, 1 x HDMI ■ 1 x 2280 M-key (PCIe Gen4 x4), 1 x 2230 A-key (USB+PCIe Gen3 x1, supports vPRO) expansion slots ■ 2 × 2.5G Ethernet ports ■ 7× USB 3.2 Gen 2, 2 x RS-232/422/485, 4 x RS-232 ■ Wide DC input range of 12~28V ■ Compliant with MIL-STD-810H 514.8C-I (when SSD is installed)
basic information
Specifications ■CPU: Intel Core Ultra 9 285T 1.4GHz (up to 5.4GHz, 24 cores, 35W TDP) Ultra 9 285 2.5GHz (up to 5.6GHz, 24 cores, 65W TDP) Ultra 7 265T 1.5GHz (up to 5.3GHz, 20 cores, 35W TDP) Ultra 7 265 2.4GHz (up to 5.3GHz, 20 cores, 65W TDP) Ultra 5 225T 2.5GHz (up to 4.9GHz, 10 cores, 35W TDP) Ultra 5 225 3.3GHz (up to 4.9GHz, 10 cores, 65W TDP) ■Memory: 2×SO-DIMM DDR5 5600 (16GB installed, supports up to 96GB) ■Storage: 2×2.5-inch SATA 6Gb/s HDD/SSD bays (supports RAID 0/1) ■Display: 1xDP++, 1x HDMI ■Operating Temperature: -20°C ~ 60°C (CPU TDP 35W & SSD), -20°C ~ 50°C (CPU TDP 65W & SSD) ■Weight (Net/Gross): 3.24 kg / 3.6 kg ■Certification: CE, FCC
Price range
Delivery Time
Model number/Brand name
IEI TANK-XM813
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（6）
| Model number | overview |
|---|---|
| TANK-XM813-U5AD-R10 | Ruggedized Fanless Embedded System With Intel Ultra 5 225T 2.5GHz (up to 4.9GHz, 10-core, TDP 35W), 16GB RAM, 1xHDMI, 1xDP++, USB4, 12~28V DC and RoHS |
| TANK-XM813-U5BD-R10 | Ruggedized Fanless Embedded System With Intel Ultra 5 225 3.4GHz (up to 4.9GHz, 10-core, TDP 65W), 16GB RAM, 1xHDMI, 1xDP++, USB4, 12~28V DC and RoHS |
| TANK-XM813-U7AD-R10 | Ruggedized Fanless Embedded System With Intel Ultra 7 265T 1.5GHz (up to 5.3 GHz, 20-core, TDP 35W), 16GB RAM, 1xHDMI, 1xDP++, USB4, 12~28V DC and RoHS |
| TANK-XM813-U7BD-R10 | Ruggedized Fanless Embedded System With Intel Ultra 7 265 2.4GHz (up to 5.3 GHz, 20-core, TDP 65W), 16GB RAM, 1xHDMI, 1xDP++, USB4, 12~28V DC and RoHS |
| TANK-XM813-U9AD-R10 | Ruggedized Fanless Embedded System With Intel Ultra 9 285T 1.4GHz (up to 5.4 GHz, 24-core, TDP 35W), 16GB RAM, 1xHDMI, 1xDP++, USB4, 12~28V DC and RoHS |
| TANK-XM813-U9BD-R10 | Ruggedized Fanless Embedded System With Intel Ultra 9 285 2.5GHz (up to 5.6 GHz, 24-core, TDP 65W), 16GB RAM, 1xHDMI, 1xDP++, USB4, 12~28V DC and RoHS |
