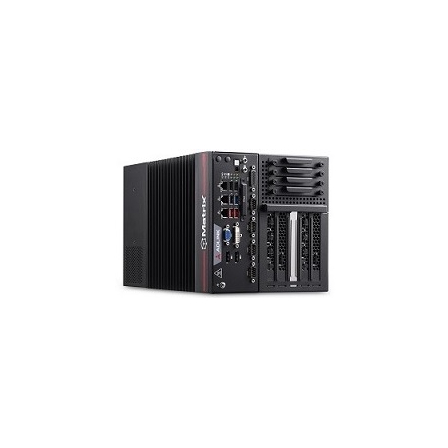

15th Generation CPU Equipped Industrial Embedded PC DLAP-8000
DLAP series for edge AI, equipped with 15th/14th/13th generation CPU, capable of supporting PEG graphics cards.
【ADLINK DLAP-8100 Features】 ■ Width 210 × Height 350 × Depth 210 mm ■ Intel 12th to 15th generation Core 35W/65W (LGA1700) CPU ■ Memory DDR5 4800MHz (4x SODIMM slots) (up to 192GB) ■ Display supports 2×DP++, 2×HDMI ■ I/O connectors 3x 2.5GBE, 4×COM, 8×DI, 8×DO, 4×USB3.2, 2×USB3.1 ■ Expansion slots support 1x PCIe Gen4 x16 (2-slots), 1x PCIe3.0 x1, 2x PCIe3.0 x8 (Signal x4) ■ Operating temperature -20 to 60°C (without PEG card)
basic information
Specifications ■CPU: Supports 15th/14th/13th/12th generation Intel Core processors (LGA1700, 35W/65W) ■Chipset: R680E ■Memory: DDR5 4800MHz (4x SODIMM slots) (up to 192GB) ■Storage: 4×2.5" SSD trays (3×SATA III 6Gb/s, 1×USB-to-SATA) ■Expansion Slots: 1x PCIe Gen4 x16 (2-slots), 1x PCIe3.0 x1, 2x PCIe3.0 x8 (Signal x4) ■I/O Connectors: 3x 2.5GBE, 4×COM, 8×DI, 8×DO, 4×USB3.2, 2×USB3.1, 2×DP++, 2×HDMI ■Input Power: AC100-240V input compatible, built-in 1000W power supply ■Dimensions/Weight: 210(W) x 350(H) x 210(D)mm / 10kg ■Operating Temperature: -20 to 60°C (without PEG card) ■Certification: EN61000-6-4/-2, CE & FCC Class A, UL/cUL, CB
Price information
Open price
Delivery Time
Model number/Brand name
ADLINK DLAP-8100
Applications/Examples of results
In-vehicle multimedia / machine control / factory and building automation / monitoring systems
