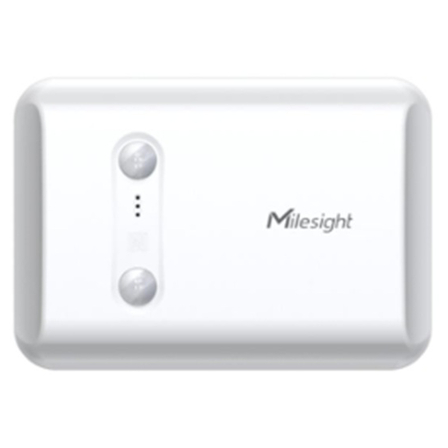

LoRaWAN passageway people counting sensor VS350

Count the number of people in the passage. Remote management via IoT Cloud using smartphones or PCs, low power consumption, wide area, long-distance wireless communication.

Features ■ High accuracy achieved through bidirectional people flow measurement with dual PIR sensors ■ Ultra-low power consumption design achieves up to 4 years of battery life (no battery replacement needed) ■ 100% anonymity with no image capture and GDPR-compliant design alleviates privacy concerns ■ Equipped with a reliable and cost-effective sensor system for measuring corridor passersby ■ Accurately performs people flow measurement within an optimal detection range ■ Improved ease of installation and scalability with wireless connectivity and compact size ■ Environmental detection function with built-in temperature sensor ■ Local storage of historical records and support for retransmission to prevent data loss ■ Ultra-low latency achieved with Milesight D2D protocol, enabling direct control without a gateway ■ NFC for one-touch setup, supporting card emulation mode ■ Good compatibility with standard LoRaWAN gateways and network servers ■ Compatible with Milesight IoT Cloud and Milesight development platform

basic information

Specifications Measurement - Technology: Dual PIR - Installation Height: Ceiling Mount: ≤3.0m / Wall Mount: 1.2m~1.3m - Detection Range: Ceiling Installation: Passage Width = 2.8m (at 3m height) / Wall Installation: Passage Width < 2.3m - Detection Rate: Single Person: Up to 95% / Multiple People: Up to 80% - Optimal Operating Temperature: 15 °C to 32 °C - Bidirectional Counting: Supported - Temperature Measurement Range: -30°C to 70°C - Temperature Accuracy: ± 0.5°C Wireless Transmission - Protocol: LoRaWAN, Milesight D2D - Antenna: Built-in - Mode: OTAA/ABP Class A Physical Characteristics - Power Supply: 2x2700 mAh ER14505 Li-SOCl2 Replaceable Battery - Battery Life: Approximately 9.7 years (SF7, EU868) (10-minute interval, 25°C, 1000 people per day) - Operating Temperature: -20°C to 60°C - Protection: IP30 - Dimensions: 100x70x21mm (3.94 x 2.76 x 0.83 inches) - Housing Material/Color: PC (Flame Retardant), White - Weight: 99g (including battery) - Installation Method: Ceiling Mount, Wall Mount
