LoRaWAN Office Environment Monitoring Kit (Temperature and Humidity, CO2, Noise, etc.)

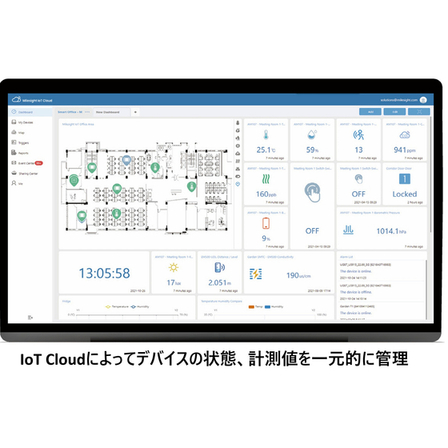

Remote monitoring of temperature, humidity, CO2 concentration, noise, and occupancy status (door open/close detection) in a centralized manner using smartphones and PCs, with low maintenance costs due to built-in battery sensors.
LoRaWAN Wireless Communication Features ■ Low Power Consumption: The power consumption varies slightly depending on the end device, but due to its fast transmission and reception speeds, it consumes less power compared to other communication standards, which helps reduce maintenance frequency. Additionally, it consumes so little power that it can achieve bidirectional communication with just one button battery, and it is said that such batteries can last over 10 years of continuous operation in some cases. ■ Long-Distance Communication: While the range of the 800MHz band used by smartphones (3G and later) is said to be about 2 to 5 km, LoRaWAN can communicate over distances of approximately 10 km, more than double that. In areas with few obstacles, communication over distances greater than 10 km is possible; however, for practical use in urban areas, it is advisable to assume a range of about 3 to 5 km, and about 1 km in indoor environments with obstacles. ■ High Noise Resistance: The 920MHz band used by LoRaWAN is less prone to interference from other wireless networks, even in environments where they exist, which helps minimize communication latency and allows for stable communication. Therefore, it can be safely utilized in factory facilities and indoor settings.
basic information
【Temperature Sensor EM300-TH-915M】 Temperature Range -30℃ to 70℃ Temperature Accuracy ±0.3℃ (0℃ to 70℃), ±0.3℃ (0℃ to 70℃) Temperature Resolution 0.1℃ Humidity Range 0% to 100% RH Humidity Accuracy ±3% (10℃ to 90℃), ±0.5% (below 10, above 90) Humidity Resolution 0.5% RH Battery Life 10 years (10-minute intervals) Protection IP67 【Magnetic Contact Sensor EM300-MCS-915M】 - Temperature (0.1℃ units) Measurement Range -30℃ to 70℃ Accuracy 0 to 70℃: ±0.3°C, -30 to 0℃: ±0.6℃ - Humidity (0.10% units) Measurement Range 0% to 100% RH Accuracy 10 to 90% RH: ±3%, other ranges: ±5% Battery Life: ≥5 years Protection IP67 【Sound Level Sensor WS302-915M】 Measurement (0.1dB units) Range 30dBA to 120dBA, 35dBC to 120dBC Accuracy ±3dB (0℃ to 45℃) Operating Temperature -20℃ to 60℃ Battery Life 5 years (10-minute intervals) Protection: IP30
Price information
We will provide a quote based on the necessity of the features. Please feel free to contact us.
Price range
P3
Delivery Time
OTHER
Model number/Brand name
EM300-TH、WS302、EM300-MCS、EM500-CO2、UG65・Milesight
Applications/Examples of results
Remote monitoring of office environment (temperature, humidity, CO2 concentration, noise, occupancy status (door open/close detection))
