LoRaWAN Tilt Monitoring Kit EM320-TILT

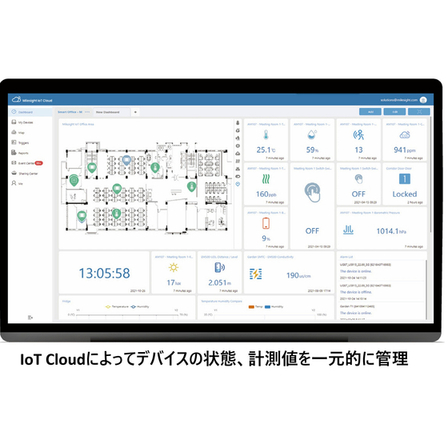

Remote monitoring of slope and incline using smartphones and PCs, detecting slope collapses, and reducing maintenance costs with built-in battery sensors.
LoRaWAN Wireless Communication Features ■ Low Power Consumption: The power consumption varies slightly depending on the end device, but due to its fast transmission and reception speeds, it consumes less power compared to other communication standards, which helps reduce maintenance frequency. Additionally, it consumes so little power that bidirectional communication can be achieved with just one button battery, and it is said that such batteries can last for over 10 years of continuous operation in some cases. ■ Long-Distance Communication: While the range of the 800MHz band used by smartphones (since 3G) is said to be about 2 to 5 km, LoRaWAN can communicate over distances of about 10 km, more than double that. In places with few obstacles, communication over distances greater than 10 km is possible, but for practical use in urban areas, it is advisable to expect a range of about 3 to 5 km, and about 1 km in indoor environments with obstacles. ■ High Noise Resistance: The 920MHz band used by LoRaWAN is less prone to interference from other wireless networks, allowing for reduced communication latency and stable communication. Therefore, it can be safely utilized in factory facilities and indoor environments.
basic information
【Tilt Sensor EM320-TILT】 Axis X, Y, Z Measurement Range -90° to +90° Measurement Accuracy ±1% Measurement Resolution 0.01° Operation Power On & Off NFC, Power Button (internal) Configuration Mobile App (via NFC) Others Power 2 x 2700 mAh Li-SOCL2 Battery Battery Life ≧3 years (10-minute interval, SF10) Operating Temperature -30 to 60℃ Protection IP67 Dimensions 85 x 58 x 18mm Mounting Wall 【LoRaWAN Gateway UG65-L00J-915M-EA】 ・CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 ・Memory 16GB eMMC Flash, 512MB DDR4 RAM ・Input Power DC 9-24 VDC (DC Jack), 1 x 802.3af PoE ・Power Consumption 2.9W (maximum 4.2W) ・Protection Dust and Water Resistant IP65 ・Dimensions 180 x 110 x 56.5 mm ・Mounting Desktop, Wall, Pole
Price range
Delivery Time
Model number/Brand name
EM320-TILT・Milesight
Applications/Examples of results
Slope failure detection, landslide monitoring, tree tilt monitoring, column tilt monitoring.
