LoRaWAN Forest Fire Detection Solution【Case Study Available】
Early detection of forest fires, mountain fires, and wildfires! Centralized remote monitoring of CO2 concentration, temperature, and humidity via smartphone or PC, with built-in battery for low maintenance costs.
LoRaWAN Wireless Communication Features ■ Low Power Consumption: The power consumption varies slightly depending on the end device, but it has a fast transmission and reception speed, and consumes less power compared to other communication standards, which helps reduce maintenance frequency. Additionally, it consumes so little power that two-way communication can be achieved with just one button battery, and it is said that such batteries can operate continuously for over 10 years in some cases. ■ Long-Distance Communication: The range of the 800MHz band used by smartphones (3G and later) is said to be about 2 to 5 km, but with LoRaWAN, communication is possible over a distance of about 10 km, more than double that. In places with few obstacles, communication over distances greater than 10 km is possible, but for practical use, it is advisable to assume about 3 to 5 km in urban areas and about 1 km in indoor environments with obstacles. ■ High Noise Resistance: The 920MHz band used by LoRaWAN is less prone to interference from other wireless networks, even in environments where they exist, which helps reduce communication latency and allows for stable communication. Therefore, it can be safely utilized in factory facilities and indoors.
basic information
【CO2 Sensor EM500-CO2-915M】 Frequency: CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923 Tx Power: 16dBm(868)/20dBm(915)/19dBm(470) Sensitivity: -137dBm @300bps Mode: OTAA/ABP Class A - CO2 Measurement (0℃ to 50℃) Range: 400 to 5000 ppm (displayed in 1 ppm increments) Accuracy: ±30ppm±3 % of reading - Temperature Range: -30℃ to +70℃ Accuracy: 0℃ to +70℃ (+/- 0.3°C), -30℃ to 0℃ (+/- 0.6°C) - Humidity Range: 0% to 100% RH Accuracy: 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) - Atmospheric Pressure Range: 300 to 1100 hPa (-40℃ to 85℃) Accuracy: ±1 hPa Operating Temperature: -30°C to 70°C Dust and Water Resistance: IP65 Dimensions: 156.1×71×69.5mm Mounting: Wall mount, pole mount, DIN rail mount
Price range
P3
Delivery Time
OTHER
Model number/Brand name
EM500-CO2-915M、(UG65)・Milesight
Applications/Examples of results

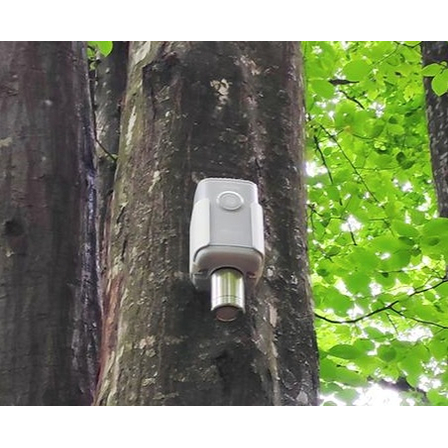

Smart Forest, detection and remote monitoring of forest fires and wildfires.
