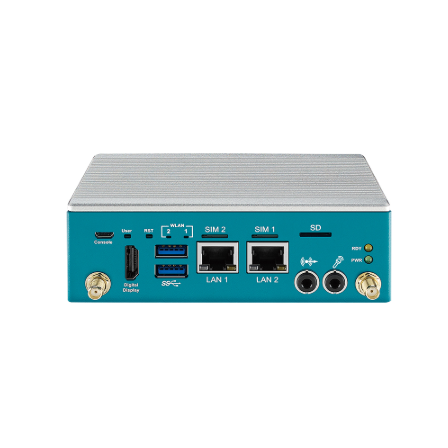

Industrial Fanless Edge AI Computing EIC-2000
Adopts NXP i.MX 8M Plus industrial-grade Arm Cortex-A53 processor, supporting extended temperature and wide power supply.
【Vecow EIC-2000 Features】 ■ Width 130 × Height 42 × Depth 78.5 mm ■ Equipped with industrial-grade Arm Cortex-A53 processor ■ Supports up to 2.3 TOPS with built-in NPU ■ Display output: 1 Digital Display supporting 4K resolution (3840 x 2160/UHD) ■ Equipped with GigE LAN port compliant with Intel Time-Sensitive Networking (TSN) standards ■ Expansion slots: ・ 1 M.2 Key B Socket (3042/3052, PCIe/USB 3, Default) ・ 1 Full-size Mini PCIe Socket ■ 2 USB 3.0 Type A, 2 COM RS-232/422/485, 6-bit GPIO (optional), 2 CAN Bus, 1 Micro USB, 2 Nano SIM Card, 2 GigE LAN ■ Extended temperature range -25 to 70℃ ■ Supports wide DC input of 9 to 55V
basic information
Specifications ■Processor: NXP i.MX 8M Plus Quad Core Arm Cortex-A53 Processor ■Memory: 1 LPDDR4 SDRAM, 4GB ■Storage: 1 eMMC, 32GB, 1 Micro SD ■Expansion Slots ・1 M.2 Key B Socket (3042/3052, PCIe/USB 3, Default) ・1 Full-size Mini PCIe Socket ■IO Interfaces: 2 USB 3.0 Type A, 2 COM RS-232/422/485, 6-bit GPIO (optional), 2 CAN Bus, 1 Micro USB, 2 Nano SIM Card, 2 GigE LAN, 1 Digital Display ■Input Power: DC 9–55V input (3-pin terminal block) ■Operating Temperature: -25–70℃ ■Certifications: CE, FCC, EN50155, EN50121-3-2 ■Mounting Method: Wall mount, DIN Rail mount (optional) ■OS: Ubuntu 20.04 LTS
Price information
Open price
Delivery Time
Model number/Brand name
Vecow EIC-2000
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
