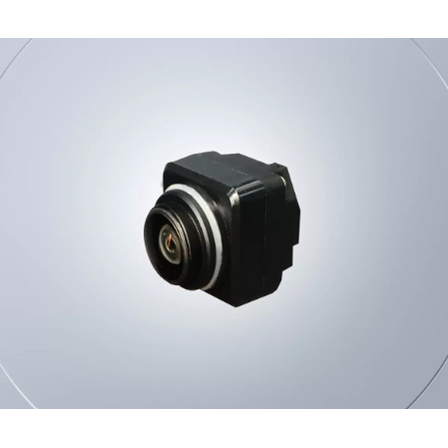

Onboard camera for autonomous driving oToCAM206-L137T
On-board camera for autonomous driving, equipped with a high-sensitivity CMOS sensor (Sony ISX019), featuring a wide-angle design with a horizontal field of view (HFOV) of 137 degrees.
**oToBrite oToCAM206-L137T (ISX019) Features** - Robustness and durability to withstand harsh environments - Complies with IP67 and IP69K standards: excellent dust and water resistance, vibration resistance - De-fogging function that keeps visibility clear even in humid environments or sudden changes in conditions - Extended operating temperature range: supports -40℃ to +85℃ - Advanced active alignment technology that achieves high image accuracy: significantly improves optical precision by keeping optical axis deviation to just 1 pixel. All pixels in the image maintain optimal clarity, resulting in excellent image quality - The ISX019 automotive-grade sensor supports a resolution of 1280(H) × 960(V), 120 dB HDR (High Dynamic Range), and LFM (LED Flicker Mitigation) - Achieves 60 fps with low power consumption, featuring built-in AE/AWB and super contrast functions, thanks to SoC (System-on-Chip) architecture and back-illuminated pixel technology
basic information
Specifications Image Sensor: CMOS (Sony ISX019) HDR: Supported ISP: Supported (SoC Sensor) Effective Pixel Count: 1280(H) × 960(V) Field of View: HFOV: 137°; VFOV: 107.6° Resolution: Center ≧ 600, Peripheral ≧ 500 Color Filter Array: RGGB Output Interface: FPD-Link III (PoC compatible) Output Format: Parallel 8-bit YUV422 Data (UYVY) Lens F No.: F2.0 IR Cut Wavelength (Edge): 650 nm Depth of Field / Subject Distance: 3 m to Infinity (Reference Distance: Infinity) Connector: Amphenol SMB1251Y3-002-TT5GP-50 Operating Voltage: DC 6~12V Startup Time After Power On: Within 500 ms Exposure Control: DOL3 Serializer: TI DS90UB913A-Q1 Frame Rate: 30fps (depending on settings) Operating Temperature: -40 to 85℃ Storage Temperature: -40 to 95℃ Dust and Water Resistance: IP67 Dimensions: 24 x 24 x 28 mm Weight: 16.5 g
Price information
Please feel free to contact us.
Delivery Time
Model number/Brand name
oToBrite oToCAM206-L137T (ISX019)
Applications/Examples of results
Development purposes for autonomous vehicles, in-vehicle testing purposes, and development purposes for Advanced Driver Assistance Systems (ADAS), etc.
