OLED-equipped LoRaWAN temperature and humidity sensor for cold chain.
Capable of measuring temperatures down to -200℃, features a status display with a 0.96-inch OLED, and allows for remote monitoring of temperature and humidity in refrigerated vehicles and freezer rooms.
Features ■ IP67 waterproof specification suitable for use in harsh environments ■ Local storage of historical data and retransmission function to prevent data loss ■ Built-in 3-axis accelerometer to monitor device status ■ Equipped with a light sensor for detecting and alarming cargo box opening and closing ■ Supports flight mode compliant with aviation safety requirements ■ Supports management and OTA upgrades via the Milesight development platform and AWS ■ Flexible design accommodating various mounting options ■ NFC-enabled for quick and easy setup ■ Equipped with base station positioning function for tracking ■ Supports one-click reporting feature ■ Supports cumulative reporting to reduce power consumption ■ Supports multiple network protocols to ensure compatibility with IoT platforms
basic information

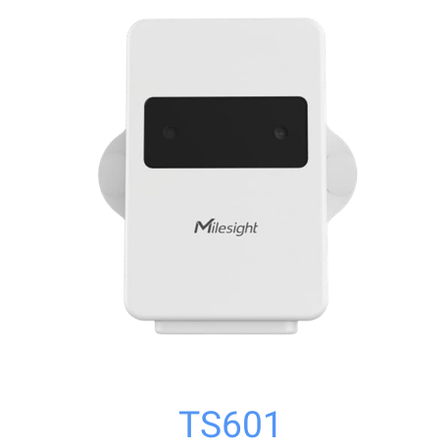

【TS601】 Equipped with indicators showing device status and threshold alarms. 【TS602】 Offers optional high-precision PT100 temperature probe, DS18B20 temperature probe, and TH temperature and humidity probe. Features a high-resolution 0.96-inch OLED display for intuitive data reading. Specifications (Measurements for TS602 comply with optional probe specifications) Temperature - Range: -35°C to +70°C - Accuracy: ±0.3°C (-35°C to 0°C) ±0.2°C (0°C to 65°C) ±0.5°C (65°C to 70°C) Humidity - Operating Principle: Digital CMOSens technology (MEMS) - Range: 0% to 100% RH - Accuracy: ±2% RH Light - Range: 0 to 600 lux - Status: Brightness/Darkness Device Position - Status: Normal/Inclinometer - Measurement Range: -90° to +90° (all X, Y, Z axes) Base Station Positioning - Parameters: Longitude/Latitude - Accuracy (on major urban roads): Standard deviation: 1 km, Maximum deviation: 5 km Wireless Transmission - Technology: LTE Cat.1 - SIM Slot: 1x Micro SIM (3FF) slot, 1.8V/3V
Price range
Delivery Time
Model number/Brand name
TS601/TS602・Milesight
Applications/Examples of results
Remote monitoring of temperature and humidity in refrigerated trucks and cold storage rooms.
