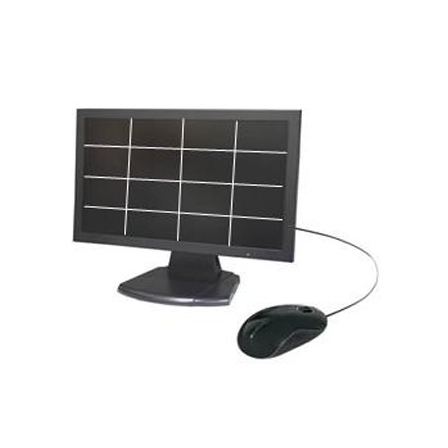

16-screen split possible IP camera monitor CH-L156-3HDVSE
15.6-inch wide LCD display, a security and monitoring monitor capable of splitting and displaying video from up to 16 IP cameras, high resolution, PoE compatible.
Features ■ H.264/H.265 compression format ■ Supports IP cameras up to 8MP ■ Graphical and text interface (GUI) ■ Control via Ethernet connection ■ Supports HDMI/VGA/DVI-D input ■ Supports up to 16 network cameras via hub/switch ■ ONVIF compliant, supports Real-Time Streaming Protocol (RTP) ■ Security-grade metal housing. VESA compliant. ■ PoE compatible monitor
basic information
Specifications Screen Size: 15.6 inches wide Display Area: 344.1 x 193.5 mm Aspect Ratio: 16:9 Resolution (Max): 1920 x 1080 Display Colors: 262K Brightness: 400 cd/m² Viewing Angle: 85/85/85/85° Video Input: 1x HDMI / 1x VGA / 1x DVI-D Audio Input (R/L): 2x RCA Headphone Output: 1x Phone Jack 3.5 mm Speakers: 2x Built-in Speakers (2W) Split Display Support: 1/2/4/6/8/9/10/16 CH IP Video Support: 8MP/D1 Supported Decoding: H.264/H.265 Supported Protocols: ONVIF, RTSP, i9, SLINK protocol (*RTMP push, DDNS, UPNP, etc.) USB Ports: 2x USB 2.0 PoE Power Source: PoE RJ45 Ethernet Cable PoE Input Range (DC): 36–57V Hub/Switch PoE Requirement: Max 40W Power Consumption: Approximately 24W Dimensions: 382.4 x 234.4 x 45 mm Weight: 3 kg Operating Temperature: 0–50°C
Price information
Open price
Delivery Time
Model number/Brand name
CH-L156-3HDVSE-IP16-PoE・Hsintek
Applications/Examples of results
Simultaneous monitoring of multiple network camera images (up to 36 cameras can be connected per monitor) and fixed-point observation in multiple areas.
