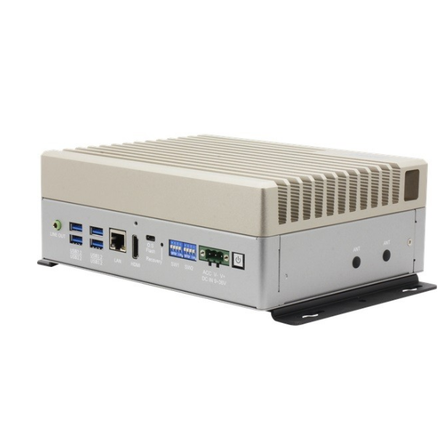

Industrial Edge AI Embedded PC BOXER-8641AI
AAEON, for embedded systems, equipped with NVIDIA Jetson AGX Orin, fanless functionality.
【AAEON BOXER-8641AI Features】 ■ Dimensions: 180mm wide × 79.1mm high × 136mm deep, 1.94 liters ■ NVIDIA Jetson AGX Orin AI accelerator, fanless ■ Memory: 64GB/32GB LPDDR5 ■ Multi-storage: 64GB eMMC / Micro SD / 2.5" SATA / M.2 2280 M Key ■ M.2 E-Key x 1, M.2 M-Key x 1, M.2 B-Key x 1 ■ Operating temperature: -20 to 55°C (with airflow)
basic information
Specifications ■AI Accelerator: NVIDIA Jetson AGX Orin ■CPU AGX Orin 32GB: 8-core Arm Cortex-A78AE CPU AGX Orin 64GB: 12-core Arm Cortex-A78AE CPU ■Memory: 64GB/32GB LPDDR5 ■Storage: 64GB eMMC 5.1, 2.5" SATA HDD/SSD x 1, M.2 2280 M-Key x 1 (NVMe) ■I/O Connectors: GbE x 2 (RJ-45), USB3.2 (Gen2) x 4 (2 USB Type-C), USB2.0 x 1, MicroUSB (Flash OS) x 1 RS-232/422/485 x 2, HDMI (2.0) x 1, DB-9 x 1 for DIO x 8, Audio Line out x 1, Mic in x 1 ■Input Power: DC Input 12V ■Operating Temperature: -20 to 55℃ (with airflow) ■Certification: CE/FCC Class B
Price information
Open price
Price range
P3
Delivery Time
P4
Model number/Brand name
AAEON BOXER-8641AI
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（2）
| Model number | overview |
|---|---|
| BOXER-8641AI-JP600E-A1-1010 | NVIDIA Jetson AGX Orin, 32GB LPDDR5 |
| BOXER-8641AI-JP600E-A2-1010 | NVIDIA Jetson AGX Orin, 64GB LPDDR5 |
catalog（1）
Download All Catalogs
