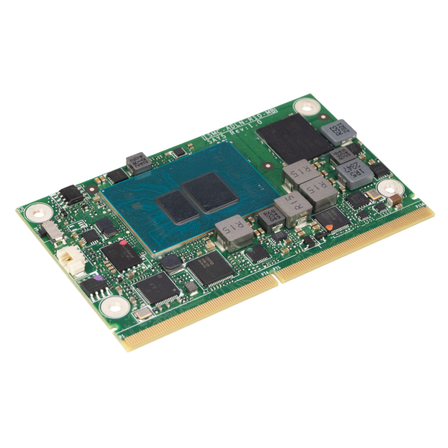

N250 Processor SMARC CPU Module LEC-TWL
ADLINK, N250, LPDDR5-4800 up to 16GB, eMMC up to 256GB
【ADLINK LEC-TWL Features】 ■ SMARC CPU module (size 82x50mm) ■ Supports Intel Atom series 2-core, 4-core, and 8-core processors ■ Equipped with up to 16GB LPDDR5 memory ■ Storage: 1 x eMMC: onboard eMMC option (up to 256G), 1 x SATA Gen3 ■ 4K resolution compatible display port: 1 x DisplayPort (1.1a), 1 x HDMI ■ Supports dual-channel LVDS (18-bit/24-bit, optional) ■ 2x 2.5 GbE RJ45 LAN, 2x USB 3.2, 4x USB 2.0, 4x UART, 2x CAN2.0A, 4x PCIe x1 Gen3 ■ Supports 5V DC power supply ■ Operating temperature range: 0℃ to 60℃
basic information
Specifications ■CPU: Intel Twin Lake N250 4-core processor ■Memory: LPDDR5-4800 up to 16GB ■Storage: 1 x eMMC: onboard eMMC option (up to 256G), 1 x SATA Gen3 ■Expansion Slots: 4x PCIe x1 Gen3 ■Network: 2x 2.5 GbE RJ45 LAN ■I/O Ports: 2x USB 3.2, 4x USB 2.0, 4x UART, 2x CAN2.0A, 1 x DisplayPort (1.1a), 1 x HDMI, 1 x LVDS ■Operating Temperature Range: 0°C to 60°C ■Dimensions: 82x50mm
Price range
Delivery Time
Model number/Brand name
ADLINK LEC-TWL
Applications/Examples of results
Factory and Building Automation / Control Systems / Communication Systems / Monitoring Systems
Line up（7）
| Model number | overview |
|---|---|
| LEC-TWL-N250-8G-64G-CT | SMARC 2.1 COM with Intel Twin Lake N250 4-core CPU, 8GB LPDDR5, 64GB eMMC , 0°C to 60°C |
| LEC-ALN-i3N305-8G-64G-CT | SMARC 2.1 COM with Intel Alder Lake I3N305 8-Core CPU, 8GB LPDDR5, 64GB eMMC, 0°C to 60°C |
| LEC-ALN-N97-8G-64G-CT | SMARC 2.1 COM with Intel Alder Lake N97 4-Core CPU, 8GB LPDDR5, 64GB eMMC, 0°C to 60°C |
| LEC-ALN-N50-4G-32G-CT | SMARC 2.1 COM with Intel Alder Lake N50 2-Core CPU, 4GB LPDDR5, 32GB eMMC, 0°C to 60°C |
| LEC-ASL-x7835RE-8G-64G-ER | SMARC 2.1 COM with Intel Amston Lake x7835RE 8-Core CPU, 8GB LPDDR5, 64GB eMMC, -40°C to 85°C |
| LEC-ASL-x7433RE-8G-64G-ER | SMARC 2.1 COM with Intel Amston Lake x7433RE 4-Core CPU, 8GB LPDDR5, 64GB eMMC, -40°C to 85°C |
| LEC-ASL-x7211RE-4G-32G-ER | SMARC 2.1 COM with Intel Amston Lake x7211RE 2-Core CPU, 4GB LPDDR5, 32GB eMMC, -40°C to 85°C |
