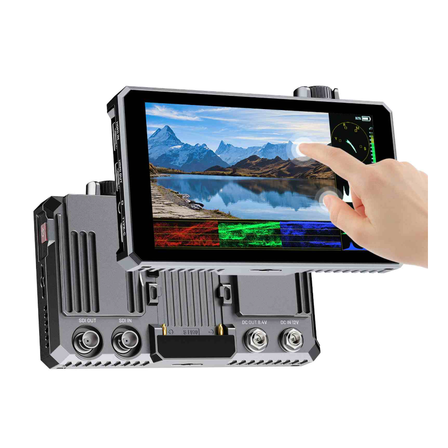

10.1" High Brightness Monitor for Video Cameras M101S
FEELWORLD, 10.1 inch 4K HDMI & 3G-SDI, 1200NIT, monitor for DSLR cameras and camcorders.
【FEELWORLD M101S Features】 ■ 10.1-inch wide (16:10) IPS LCD panel ■ 1920x1200 high-resolution LCD ■ High resolution 4096x2160 (4K DCI) display ■ Ultra-high brightness 1200cd/m2 LED backlight ■ CNC aluminum alloy housing ■ Touch panel equipped for easy menu operation ■ 3D-LUT reading, editing, and display capabilities ■ 3G-SDI input x2, 3G-SDI output x2 ■ HDMI input x2, HDMI output x2 ■ Audio output (3.5mm) x1 ■ Shooting assist functions (False Color, Check Field, Zoom-in) ■ Supports two batteries (F970)
basic information
Specifications - Panel: 10.1-inch wide (16:10) IPS LCD with LED backlight - Display resolution: 480i to 4096x2160p (4K) - Physical pixels: 1920x1200 - LCD brightness: 1200cd/m2 - Contrast: 1500:1 - Viewing angle: 80°/80° (left/right) 80°/80° (up/down) - Input signals: 2 SDI, 2 HDMI (2.0), Tally, SD card slot (for 3D-LUT only) - Output signals: 2 SDI, 2 HDMI (2.0) - DI input, SDI output: BNC - Power supply / Power consumption: DC 7V to 24V / 24W - Dimensions / Weight: 244(W)x157(H)x25.9(D)mm / 849g - Operating temperature: -10 to 60℃ Package contents - Main unit - F970 dual battery plate (compatible batteries: Sony NP-F930, NP-F960, NP-F970) - TALLY connector - U-bracket - Manual - AC adapter AC100V DC12V - SDI cable - Mini HDMI cable - HDMI cable
Price range
Delivery Time
Model number/Brand name
FEELWORLD M101S
Applications/Examples of results
4K UHD/Full HD camera, monitor use for film shooting, etc.
