Industrial L2+/L3 Managed Switch DAS-16G(P)-4X
16-port Gigabit PoE+ + 4-port 10GbE SFP+, 16-port PoE+ power supply function, extended temperature range -40 to 75℃.

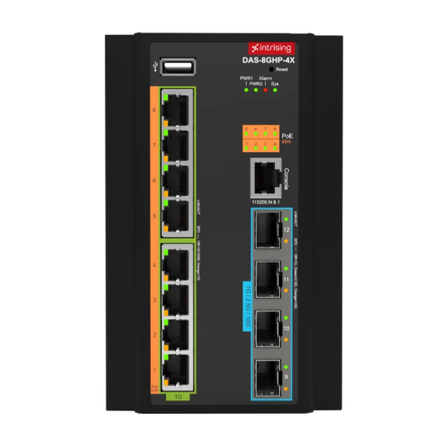

**Intrising DAS-8GHP-4X Features** - 8-port Gigabit RJ45 + 4-port 10GbE SFP+ equipped - 8-port PoE++ power supply function (IEEE 802.3af/at/bt, up to 60W/port) - Maximum PoE power capacity of 240W (standard model) - Layer 2+/Layer 3 managed switch - Redundant network support with ERPS (G.8032), RSTP/MSTP - Dual power input support - Supports DHCP Server/Client/Relay, VLAN, QoS, ACL - Network management via SNMP v1/v2c/v3, Web GUI, CLI, SSH - Operating temperature range of -40 to 75°C (-I model) - Supports DIN rail and wall mounting
basic information
Specifications ■Interface 10/100/1000Base-T×16 1G/2.5G/10GbE SFP+×4 ■PoE PoE Standard: IEEE 802.3af/at (PoE model) PoE Power Supply Capacity: Maximum 30W/port PoE Power Supply Capacity: Maximum 240W (standard model), 80W@12V / 120W@24V (24V model) ■Switching Function Layer2+/Layer3 ■Redundancy ERPS (G.8032), RSTP, MSTP ■Power Supply Dual 44–56VDC (PoE standard), Dual 9–36VDC (24V model) ■Dimensions • 95.84mm (W) x 135mm (D) x 152mm (H) ■Mounting Method DIN rail and wall mounting compatible (wall mounting is optional) ■Protection Rating IP30 ■Environment Operating Temperature: -20–60℃ (standard), -40–75℃ (-I model) ■MTBF 586,082.5 hours
Price information
Open price
Price range
P2
Delivery Time
P4
Model number/Brand name
Intrising DAS-16G(P)-4X
Applications/Examples of results
Cold outdoor, offshore, railway, ships, oil refinery, coal mine, pharmaceutical company, various factories, meteorological station.
Line up（6）
| Model number | overview |
|---|---|
| DAS-16G-4X-24V | Dual 9~36VDC input , -20°C~60°C / -4°F~140°F |
| DAS-16G-4X-24V-I | Dual 9~36VDC input , -40°C~75°C / -40°F~167°F |
| DAS-16GP-4X | Dual 44 ~ 56VDC input , -20°C ~ 60°C / -4°F ~ 140°F , PoE per port up to 30W; PoE total budget 240W |
| DAS-16GP-4X-I | Dual 44 ~ 56VDC input , -40°C ~ 75°C / -40°F ~ 167°F , PoE per port up to 30W; PoE total budget 240W |
| DAS-16GP-4X-24V | Dual 9 ~ 36VDC input , -20°C ~ 60°C / -4°F ~ 140°F , PoE per port up to 30W; PoE total budget 80W@12V, 120W@24V |
| DAS-16GP-4X-24V-I | Dual 9 ~ 36VDC input , -40°C ~ 75°C / -40°F ~ 167°F , PoE per port up to 30W; PoE total budget 80W@12V, 120W@24V |
