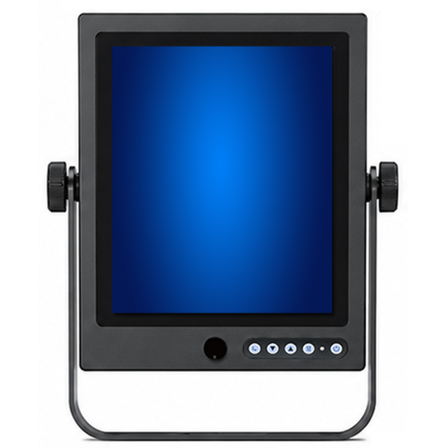

Vertical dimmer marine monitor IM-40121S-A0XG5A-V
Yorkmount 12.1 inches, 600x800, high brightness of 1000 nits readable even in sunlight, IP65 front waterproof, VR knob.
Features - Monitors for ships requiring dust and waterproofing, such as PCs, radars, and plotter fish finders - High brightness (1000 NIT) visible even in sunlight - Vertical display optimal for radars and plotter fish finders - IP65 front dust and waterproof rating - Optical bonding to prevent condensation - Dimmer function 0-100% - Wide DC power supply with input range of DC 9V to 36V - Includes yoke stand for marine use
basic information
Specifications - Screen size: 12.1 inches (3:4) - Physical pixels: 600 x 800 - Display resolution: 600 x 800 (SVGA) - LCD panel brightness: 1000 cd/m² - Viewing angle: L/R 85/85°; U/D 85/85° - Input connectors: VGA x 1, HDMI x 1 - Enclosure: Front IP65 dustproof and waterproof, panel mount - Power supply: DC 9V to 36V input power - Power consumption: <= 12W - Operating temperature: -20 to 70°C - Weight: Approximately 2 kg - Size: 246.5 (W) x 390 (H) x 109 (D) mm including the Yoke stand and protrusions
Price information
Open price
Price range
P3
Delivery Time
OTHER
Model number/Brand name
IM-40121S-A0XG5A-V-800・Rejitek
Applications/Examples of results
Sub-monitor for navigation instruments (such as fish finders, sonars, radars, and plotters for ships and boats).
