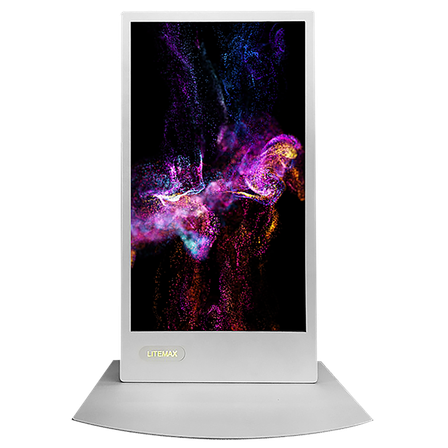

55-inch Transparent OLED Display TPD5500-L
LITEMAX, 55" organic EL (OLED) multi-touch panel. Resolution 1920x1080, high contrast 17,000:1.
**LITEMAX TPD5500-L Features** ■ 55" physical resolution 1920×1080 transparent organic EL (OLED) ■ Display resolution: 1920×1080 ■ Contrast ratio 170,000:1 ■ Approximately 1.07 billion colors displayable ■ Brightness 200 cd/m² (standard), peak 600 cd/m² ■ M12 connector adopted ■ DC 9–36V power input compatible ■ Optical bonding support (optional) ■ Suitable for digital signage, AI interactive, show windows, exhibitions, and museums ■ EN50155 certification obtained
basic information
Specifications - Screen size: 55 inches - Panel: Transparent OLED - LCD panel brightness: Normal: 200 cd/m², Peak: 600 cd/m² - Physical resolution: 1920×1080 - Contrast ratio: 17,000:1 - Input: V-by-One - Viewing angle: Horizontal 120 degrees / Vertical 120 degrees - Power supply: DC 24V (Input range: DC 9–36V) - Dimensions: 1232.1 × 845.7 × 36.3mm - Operating temperature: 0℃ to 45℃ - Weight: Approximately 21kg - Warranty period: 1 year
Price range
Delivery Time
Model number/Brand name
LITEMAX TPD5500-L
Applications/Examples of results
Digital signage, AI interactive, show windows, exhibitions, for museums.
