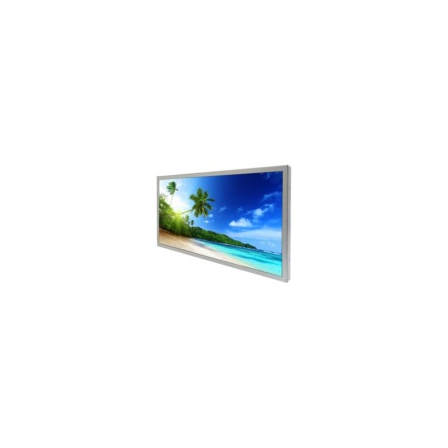

18.5” Industrial Embedded Display ULO1853-K
18.5 inches, ideal for embedded use with an open frame, low power consumption, wide viewing angle, high resolution 1920x1080.
【LITEMAX ULO1853-K Features】 ■ 18.5” TFT LCD, LED Backlight ■ Display Size: 409(H) x 230(V) ■ Display Resolution: 1920x1080 ■ Low Power Consumption (17W) ■ Supports HDMI and DisplayPort Inputs ■ Wide Viewing Angle: 178°(H), 178°(V) ■ LED Backlight Lifespan: 30,000 hours (MTBF)
basic information
Specifications - Screen size: 18.5 inches - Display area: 409(H) x 230(V) mm - LCD panel brightness: 500 cd/m² - Display resolution: 1920x1080 - Aspect ratio: 16:9 - Contrast ratio: 1100:1 - Viewing angle: Horizontal 178 degrees / Vertical 178 degrees - Input connectors: DVI-D, HDMI - Power supply: DC 12V - Dimensions: 433.0(W) x 257.2(H) x 44.5(D) mm - Weight: 2.2 kg - Operating temperature: 0 to 50℃ - Warranty period: 1 year
Price range
Delivery Time
Model number/Brand name
LITEMAX ULO1853-K
Applications/Examples of results
Ideal for kiosks, factory automation, transportation equipment, military, and gaming applications.
Line up（1）
| Model number | overview |
|---|---|
| ULO1853-KHB-T11 | 18.5 inches, 500 nits, 1920x1080, LID18C, AD68862HP, O/B, DC12V, 5in1, V1 |
