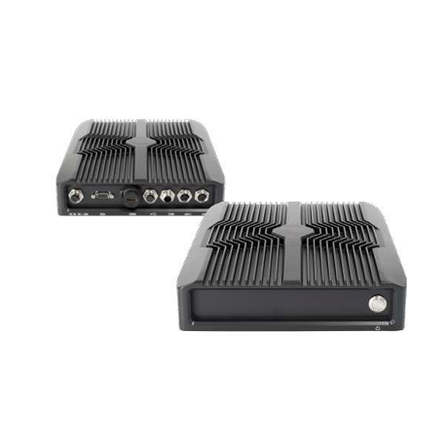

AGX Thor equipped waterproof AI PC WCO-6000-THR-A
Jetson AGX Thor T5000 (128GB)/T4000 (64GB), extended temperature -20 to 60°C, completely waterproof and dustproof IP66.
【WCO-6000-THR-A Features】 ■ Width 250 × Height 88.5 × Depth 200 mm ■ Equipped with NVIDIA Jetson AGX Thor T5000 (128GB) / T4000 (64GB) ■ Dustproof and waterproof design compliant with IP66 ■ Equipped with 10GbE×4 + 2.5GbE×2 M12 LAN ports ■ Supports 4-port PoE+ power supply (maximum 25W/port, total power supply 120W) *Optional ■ Equipped with 8 waterproof FAKRA-Z connectors for GMSL2 cameras ■ Equipped with USB 3.2 Gen 2×2 ■ Equipped with CAN FD×4, RS-232/422/485×2, isolated DIO (DI×7/DO×7) ■ Supports M.2 NVMe SSD, 4G/5G, Wi-Fi/Bluetooth expansion ■ Wide range power input compatible with 24–48VDC ■ Supports AT/ATX power modes, equipped with ignition detection function ■ Wide temperature operation range of -20 to 60°C ■ Wall mountable ■ Designed for vibration and shock resistance for automotive and industrial applications ■ CE, FCC Class B, E-Mark 24, EMC Conformity with EN50155 & EN50121-3-2, UL 62368-1
basic information
Specifications ■AI Computing: NVIDIA Jetson AGX Thor ■Processor: T5000: 14-core Arm Neoverse-V3AE / T4000: 12-core Arm Neoverse-V3AE ■Memory: T5000: 128GB LPDDR5X / T4000: 64GB LPDDR5X ■AI Performance: T5000: Up to 2070 TFLOPS / T4000: Up to 1200 TFLOPS (FP4-Sparse) ■Storage: M.2 M Key 2280, PCIe x4 NVMe ■I/O Connectors: 10GbE x4, 2.5GbE x2, Waterproof FAKRA-Z x8, USB 3.2 Gen 2 x2, USB Type-C x1, Micro USB x1, HDMI x1, RS-232/422/485 x2, CAN FD x4 (not supported on T4000), Isolated DI x7 / DO x7 ■PoE: PoE+ x4, Maximum 25W/port, Total power supply 120W (optional) ■Input Power: DC 24-48V input (M12 5-pin K-code) ■Operating Temperature: -20 to 60°C ■Waterproof Rating: IP66
Price information
Open price
Price range
P3
Delivery Time
P4
Model number/Brand name
Premio WCO-6000-THR-A
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（1）
| Model number | overview |
|---|---|
| WCO-6000-THR-A | WCO-6000-THR-A IP66 Physical AI Computer with NVIDIA Jetson AGX Thor |
