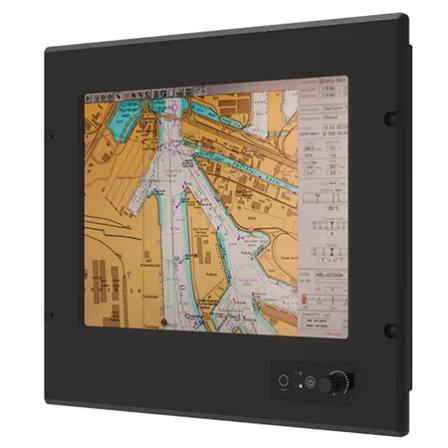

19" Marine Panel PC with Dimmer R19IAD3SMRM2FP
Equipped with 13th generation Core processor, capacitive touch, dimmer function (0-100%), DNV certification (marine grade), front waterproof IP66.
**Winmate R19IAD3S-MRM2FP Features** ■ 19" Resolution 1280x1024 ■ Equipped with Intel Core i5 i51335U Processor ■ Fanless operation ■ Memory: 8GB/16GB/32GB ■ Storage: 128GB/256GB/512GB/1TB/2TB ■ Supports 1 x HDMI ■ IP66 compliant aluminum panel mount enclosure with powder-coated finish ■ Quick access to functions and display control via capacitive touch keys (supports ECDIS DAY, DUSK, NIGHT mode switching) ■ Dimming brightness adjustment from 0-100% ■ Wide DC power supply with DC9-36V input ■ Certified for electronic chart information display, DNV, IEC60945, and IACS-E10 ■ Supports VESA/panel mount installation ■ Color correction for ECDIS compliance ■ Shock and vibration resistant ■ OS: Supports Windows 11 IoT Enterprise (64 bit)
basic information
Specifications - CPU: Intel Core i5 1335U Processor - Memory: 8GB/16GB/32GB - Storage: 128GB/256GB/512GB/1TB/2TB - Physical Pixels: 1280x1024 - Display Area: 376.32 x 301.06 mm - LCD Panel Brightness: 350cd/m2 - Video Input: 1 x HDMI - IO Interface: 2 x USB3.0, 1 x USB2.0, 1 x RS232/RS422/485, 2 x 2.5 Giga LAN RJ45, 4 x NMEA 0183 Port - Enclosure: Front waterproof IP66, VESA/panel mount - Power Supply: DC 9V to 36V input power - Touch Function: Resistive touchscreen (RS232/USB) - Operating Temperature: -15 to 55℃ - Size/Weight: 429(W) x 382(H) x 72.8(D) mm / 7.8 kg - Warranty Period: 1 year - Certification/Standards: CE, FCC, DNVCG0339, IEC60945 4th, IACS E10
Price information
Open price
Price range
P3
Delivery Time
OTHER
The delivery time may vary depending on the quantity, so please feel free to contact us.
Model number/Brand name
Winmate R19IAD3S-MRM2FP
Applications/Examples of results
Outdoor use, monitors for PCs and video equipment on ships, etc.
