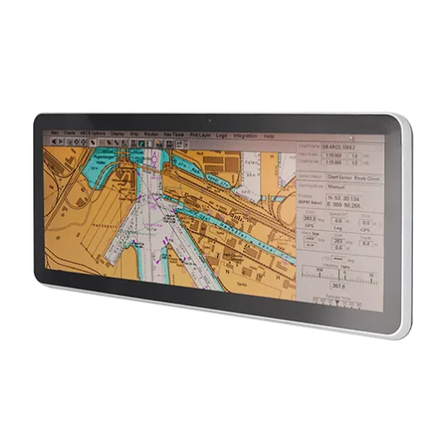

Marine Dashboard Panel PC W15IE3S-MRB1FP
Elkhart Lake Pentium N6415 processor equipped, capacitive touch, DNV certification (marine grade) obtained, front waterproof IP66.
【Winmate W15IE3S-MRB1FP Features】 ■14.9" resolution 1920 x 720 ■Equipped with Intel Elkhart Lake Pentium N6415 processor dashboard panel PC ■Fanless design ■Memory: 4GB/8GB/16GB ■Storage: 256GB/512GB ■Supports high brightness of 950cd/m2 ■Supports 1 x HDMI ■IP66 compliant aluminum panel mount enclosure with powder-coated finish ■Capacitive touch keys for quick access to functions and display control ■Dimming brightness adjustment from 0-100% ■Wide DC power supply with DC9-36V input ■Certified by DNV, IEC60945, and IACS-E10 ■Shock and vibration resistant ■OS: Supports Windows 11 IoT Enterprise (64 bit)
basic information
Specifications - Size: 12.3 inches - CPU: Intel Elkhart Lake Pentium N6415 processor - Memory: 4GB/8GB/16GB - Storage: 256GB/512GB - Physical resolution: 1920 x 720 - Display area: 355.68 x 133.38 mm - LCD panel brightness: 950 cd/m² - Video input: 1 x HDMI - IO interface: 2 x USB3.2 Gen1x1, 2 x RS232(Default)/422/485, 2 x 2.5 Giga LAN RJ45 - Enclosure: Front waterproof IP66, VESA/panel mount - Power supply: DC 9V to 36V input power - Touch function: Resistive capacitive touch (RS232/USB) - Operating temperature: -15 to 55℃ - Size/Weight: 400.1(W) x 187.6(H) x 59(D) mm / 4.8 kg - Warranty period: 1 year - Certification/Standards: CE, FCC, DNVCG0339, IEC60945 4th, IACS E10
Price information
Open price
Price range
P3
Delivery Time
OTHER
The delivery date may vary depending on the quantity, so please feel free to contact us.
Model number/Brand name
Winmate W15IE3S-MRB1FP
Applications/Examples of results
Outdoor use, monitors for PCs, video equipment, etc. on ships.
