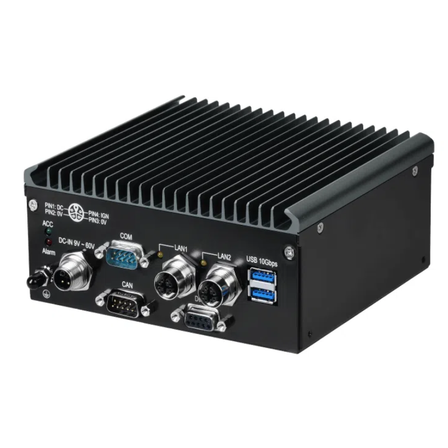

AI Module Embedded PC for Automotive IBOX-601-TVI8
SINTRONES, equipped with NVIDIA Jetson Orin NX / Nano, fanless operation, extended temperature support.
【SINTRONES IBOX-600 Features】 ■ Width 244 × Height 69 × Depth 135 mm ■ Equipped with NVIDIA Jetson Orin NX / Nano, fanless operation ■ Supports up to 1024 CUDA cores ■ 16GB LPDDR5 (Orin NX CPU module) / 8GB LPDDR5 (Orin Nano CPU module) ■ Supports 8 inputs for TVI/AHD cameras, 8 channels of camera input via BNC connectors ■ 1 display output (HDMI) ■ Expansion slots: M.2 Key M (NVMe SSD) ×1, M.2 Key B (WWAN) ×1, M.2 Key E (Wi-Fi/BT) ×1, Mini PCIe (GNSS) ×1 ■ Equipped with 2.5GbE ×1 + GbE ×1 Ethernet ports ■ Supports CAN FD, DI ×4, DO ×4, RS-232/422/485 ■ Extended temperature range -25 to 65℃ (with airflow, 0.6m/s) ■ Wide DC input 9-60V, controlled by ignition key ■ Vehicle EMark certification ■ Complies with MIL-STD-810H and IEC 60068-2-64 for vibration and shock resistance
basic information
Specifications ■Module: NVIDIA Jetson Orin /NX 16GB – (1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5) /Nano 8GB – (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8GB LPDDR5) ■Storage: 1 x M.2 2280 Key M for NVMe SSD ■I/O Connectors: 2xRJ-45 (1 x 2.5GbE & 1 x GbE), 2 USB (2 USB3.2), 1 COM, 4x DI, 4x DO, 1x CAN bus, 1x HDMI, 8 x TVI/AHD (BNC) ■Mounting Method: Wall mounting ■Power Supply: DC input 9–60V, controlled by ignition key ■Certification: CE, FCC Part-15 Class A, E-mark, EN50155, EN45545 (R25) ■OS: NVIDIA JetPack 6.2 or later (including Jetson Linux and NVIDIA development tools)
Price information
Open price
Delivery Time
Model number/Brand name
SINTRONES IBOX-601-TVI8
Applications/Examples of results
Vehicle computing systems for in-vehicle machines, factory, building automation/monitoring systems.
