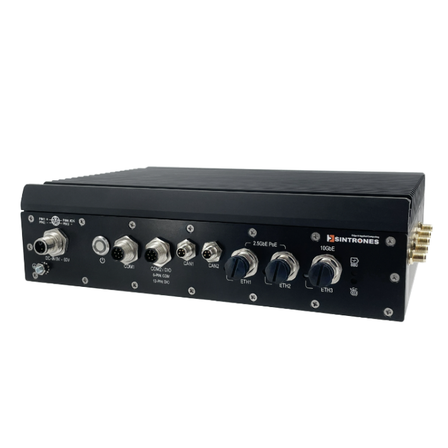

Fully waterproof Edge AI PC IBOX-650P-IP66-T1
SINTRONES, equipped with NVIDIA Jetson AGX Orin 64GB, waterproof IP66, GMSL camera, fanless feature.
**SINTRONES IBOX-650P-IP66-T1 Features** - Width 300 × Height 77.5 × Depth 190 mm - NVIDIA Jetson AGX Orin 64GB (2048 CUDA cores + 12-core ARM Cortex-A78AE CPU + 64 GB LPDDR5), fanless operation - IP66 dust and waterproof - 1 display output (HDMI2.1) (IP67) - Expansion slots: M.2 Key M (NVMe SSD) ×1, M.2 Key B (WWAN) ×1, M.2 Key E (Wi-Fi/BT) ×1, Mini PCIe ×1 - 1 x 10GbE (M12), 2 x 2.5GbE PoE+ (M12), 2 x USB3.2 (IP67), 1 x RS-232/422/485 - 4 x DI, 4 x DO, 1 x AI, 1 x PWM - 2 x CAN FD (high-performance vehicle CAN) - Supports 4 automotive GMSL-2 cameras - Extended temperature range -25 to 70℃ - Wide DC input 9 to 60V - Internal battery UPS can be installed (optional) - Automotive EMark certification, railway standard EN50155 certification
basic information
Specifications ■GPU+CPU Module: ・NVIDIA Jetson AGX Orin 64GB – 2048 CUDA cores + 12-core ARM Cortex-A78AE CPU + 64 GB LPDDR5 ■Storage: 1 x 64GB eMMC (Built-in within SoM), 1 x M.2 2280 Key M slot ■Expansion Slots: 1 x M.2 3042/52 Key B slot (USB3.0), 1 x M.2 2230 Key E slot, 1 x mPCIe Full size ■I/O Connectors: 1 x 10GbE (M12), 2 x 2.5GbE PoE+ (M12), 2 x USB3.2 (IP67), 1 x RS-232/422/485, 4 x DI, 4 x DO, 1 x AI, 1 x PWM (IBOX-650P-IP66-DIO) ■Certifications: CE, FCC Class A, E-Mark, ECE R118, EN50155, EN45545-2 (R25) ■OS: NVIDIA JetPack 6.2 or above
Price information
Open price
Delivery Time
Model number/Brand name
SINTRONES IBOX-650P-IP66-T1
Applications/Examples of results
Vehicle computing systems for onboard machines, factory, building automation/monitoring systems.
Line up（1）
| Model number | overview |
|---|---|
| IBOX-650P-IP66-T1-JAO64 | NVIDIA Jetson AGX Orin 64GB SoM w/ 1 x T1 / 1 x 10GbE / 2 x 2.5GbE / 2x PoE / 4 x GMSL-2 / 2 x CAN FD / DC 9-60V / Edge AI Computing |
