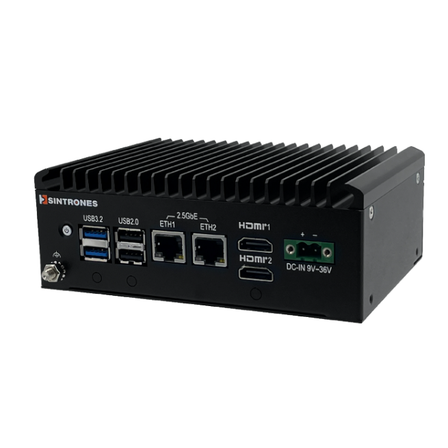

N150 Equipped Fanless Compact Embedded PC SBOX-2625-SF
SINTRONES, equipped with Twin Lake Processor N150, extended temperature support, fanless ultra-compact embedded PC.
**[SINTRONES SBOX-2625-SF Features]** ■ Width 182 × Height 40 × Depth 106 mm ■ Equipped with Intel Twin Lake N150 4-core processor, fanless operation ■ 1x DDR5-4800 SO-DIMM (up to 16GB) ■ 4K resolution support, 2 display outputs (2 HDMI) ■ 1x M.2 3042/3052 Key B, 1x M.2 2230 Key E for Wi-Fi/BT expansion slot ■ 1x 2.5'' SATA SSD, 1x M.2 2242 Key B for SATA SSD ■ 2x 2.5GbE, 2x USB 3.2 Gen 1, 4x USB 2.0, 4x DI (DC 5-36V), 4x DO (DC 5V/100mA), 2x RS-232/422/485 ■ Fanless ultra-compact chassis suitable for installation in limited spaces ■ Operating temperature range -30 to 60℃ (with airflow) ■ Supports DIN rail, wall, and VESA mounting ■ CE, FCC Class A, UKCA, IEC/EN 62368-1
basic information
Specifications ■CPU: Intel Twin Lake N150, 4 cores, up to 3.60GHz ■Memory: 1xDDR5-4800 SO-DIMM (up to 16GB) ■Graphics: Intel Graphics ■Storage: 1x2.5'' SATA SSD, 1 x M.2 2242 Key B for SATA SSD ■I/O Connectors: 2x2.5GbE, 2 x USB 3.2 Gen 1, 4 x USB 2.0, 4 x DI (DC 5-36V), 4 x DO (DC 5V/100mA), 2 x RS-232/422/485, 2 HDMI ■Expansion Slots: M.2 Key B ×1, M.2 Key E ×1, 2.5-inch SATA SSD ×1 ■Weight: 0.7Kg ■Operating Temperature: -30 to 60℃ ■Power Supply: DC 9 to 36V ■Certifications: CE, FCC Class A, UKCA, IEC/EN 62368-1 ■OS: Windows 11 IoT Enterprise LTSC, Ubuntu 24.04 LTS
Price information
Open price
Delivery Time
Model number/Brand name
SINTRONES SBOX-2625-SF
Applications/Examples of results
For vehicle-mounted, machine, factory, and building automation/monitoring systems.
