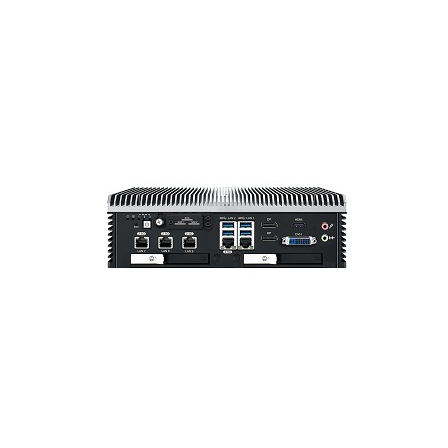

Core 200S equipped industrial embedded PC ECX-3000V
Vecow, railway and in-vehicle applications, Core 200S series with 14th generation CPU, extended temperature support, ignition startup control.
【Vecow ECX-3000V Features】 ■ Dimensions: 260mm (W) x 79mm (H) x 175mm (D), 3.59 liters, Weight: 3.8kg ■ Compatible with Intel Core 200S series and 12th, 13th, and 14th generation Core processors ■ 2 DDR4-3200MHz (up to 64GB) ■ 1 DVI-I, 1 HDMI, 2 DP (supports 8K resolution), 4 independent display outputs ■ Expansion slots: 1 M.2 KeyB, 1 M.2 KeyE, 1 Mini PCIe, 2 SUMIT (optional) ■ 2.5" HDD front access ■ 6 USB3.2, 4 COM, 2 SIM card slots ■ Wide DC input: 12-50V ■ Software-controlled ignition key ■ Railway standard EN50155 certified
basic information
Specifications ■CPU Intel Core 200S series and 14th, 13th, and 12th generation Core processors ■Memory 2 DDR4-3200MHz (up to 64GB) ■Expansion Slots 1 M.2 KeyB, 1 M.2 KeyE, 1 Mini PCIe, 2 SUMIT (optional) ■Storage 2.5" HDD/SSD x 2, SATA III (6Gbps) x 2, mSATA x 1, M.2 Key M x 1 ■I/O Connectors 6 USB3.2, 4 COM, 2 SIM Card, 1 DVI-I, 1 HDMI, 2 DP, 1 GigE LAN, 4 2.5G LAN ■Input Power DC 12-50V input (3-pin terminal block: On, Off, IGN) ■Operating Temperature 0°C to 60°C ■Mounting Method Wallmount by mounting bracket - DIN Rail Mount (optional) - 2U Rackmount (optional) ■Certifications CE, FCC, EN50155, EN50121-3-2
Price information
Open price
Delivery Time
Model number/Brand name
Vecow ECX-3000V
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（1）
| Model number | overview |
|---|---|
| ECX-3000V | High Performance Fanless Workstation System, Intel Core 200S & 14/13/12th Gen Processors, up to 5 2.5G LAN & 1 GigE LAN, optional 2 Front-access 2.5" SSD Trays, 6 USB 3.2, 16 GPIO |
