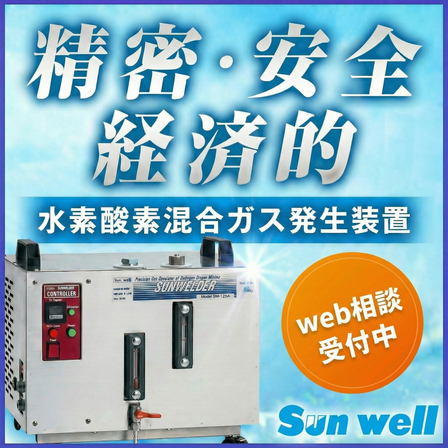

Hydrogen and oxygen gas generation device "Sunwelder SW Series"
Quickly adapts to complex shapes with clean gas that contains no impurities! A heat generation device that uses water as fuel, excelling in economy and safety.
The hydrogen-oxygen gas generation device "Sunwelder" is a mixed gas generation device for "hydrogen" and "oxygen." It produces a clean and stable gas that does not generate soot, thanks to its simple and low-cost fuel made from water and electricity. Because it contains no impurities, it has a proven track record in processing quartz glass, and its high-temperature flame (3000°C) makes it ideal for speedy and complex deburring and surface treatment. 【Features】 - Produces a clean and stable gas without soot, yielding a high-temperature flame. - When using methyl alcohol, it imparts high reduction characteristics to the torch flame, creating an oxidation prevention effect. - The flame is very narrow and straight, and can be focused to a very small size, resulting in minimal thermal impact on the surroundings. - Achieves heating treatment similar to that of a laser welding machine. *For more details, please contact us or download the catalog.
basic information
【Specifications】 [SW-122A] ○ Maximum gas generation capacity: 170L/hour ○ Flame temperature: Over 2000℃ ○ Pressure setting method: Digital switch ○ Pressure setting range: 0 to 29kPa ○ Device weight: 57kg ○ Device dimensions (W×D×H/mm): 450×310×360 [SW-125A] ○ Maximum gas generation capacity: 340L/hour ○ Flame temperature: Over 2000℃ ○ Pressure setting method: Digital switch ○ Pressure setting range: 0 to 29kPa ○ Device weight: 84kg ○ Device dimensions (W×D×H/mm): 450×500×360 ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
【Applications】 ○ For burning semiconductor and electronic components ○ For ball bonding of semiconductors ○ For soldering various coil terminals, substrates, etc. ○ For soldering harness terminal connectors ○ For soldering ceramic substrates, etc. ○ For stripping enamel wire coating of motors, etc. ○ For baking motors, etc. ○ For soldering and brazing thermocouples ○ For deburring resin products ○ For flame polishing acrylic resin ○ For processing glass and ceramics ○ For brazing pipes in refrigerators, coolers, etc. ○ For brazing and welding precious metals and dental technology ○ For sealing brazing of endoscopes, electronic tubes, etc. ○ For brazing and soldering Bourdon tubes of pressure gauges ○ For brazing fishing gear products ○ For attaching and soldering temperature fuses ○ For heat sources in laboratories, schools, etc. ○ For brazing and soldering various small parts ○ For hardening and annealing various small parts ● For more details, please contact us or download the catalog.
