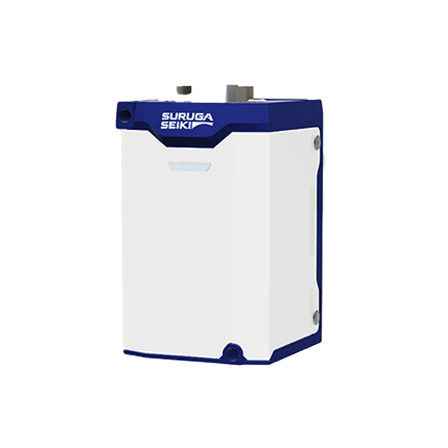

Laser Autocollimator Smart LAC Sensor Head (H410)
Easy measurement of warping and tilt!
Measurement of workpiece tilt possible with a single-point irradiation! Repetitive reproducibility: 1 second (0.0003 degrees) - a laser autocollimator that achieves high precision and high resolution. 【Features】 - High performance in a palm-sized design - Laser wavelength lineup: Red (655nm) / Blue (450nm) / Green (520nm) / Infrared (852nm) - No initial calibration required - Compliant with KC/CE/FCC/FDA 【Applications】 - Measurement of semiconductor wafer warpage - Space-saving implementation and device integration - Angle adjustment of optical components - Angle measurement of optical elements with AR coating, etc.
basic information
Measurement range [± degrees] 1.75 Reproducibility [seconds] (Ave.) 1 Linearity [%] (Ave.) ±0.2～0.4 of F.S. Measurement wavelength [nm] 450±10～852±10 Output beam diameter [φmm] 1 Measurement distance to target [mm] ±0.50 degrees: 0～300 ±1.00 degrees: 0～200 ±1.75 degrees: 0～120 (Varies by measurement range) Laser output 0.39mW or less (Class 1) Weight [kg] 0.14 (excluding AC adapter) Compatible tilt stage HB10 * HPU-1000 and H410 are required for measurement. * Wavelength and beam diameter can be selected from standard products.
Price range
P3
Delivery Time
P3
Model number/Brand name
H410-175R
Applications/Examples of results
<Camera Industry> Optical Element Tilt Alignment <Semiconductor> Wafer Warpage Measurement <Laser Processing> Optical Path Bending Mirror Angle Monitoring
