For in-house logistics in the manufacturing industry! Suzuki's multifunctional electric cart 'MITRA'
Capable of traversing rough terrain with high mobility, even on uneven surfaces, for outdoor and inter-building transportation! Contributing as a platform for robots responsible for in-house logistics.

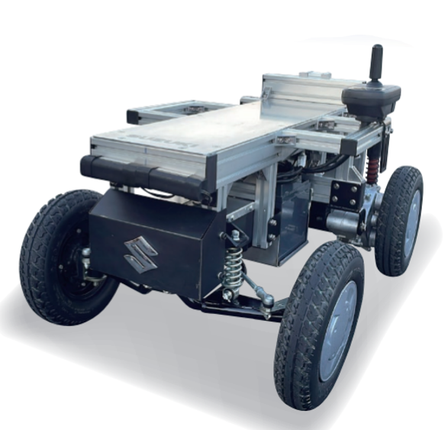

Suzuki is planning to develop the multi-purpose electric cart "MITRA," which applies the technology of electric wheelchairs cultivated over the past 50 years, as a mobility platform for various robots. With front and rear suspension and independently controlled motors for the rear wheels, it boasts high driving performance and can operate outdoors and over obstacles. It can navigate cracked factory floors and inclines when entering buildings, as well as transport between buildings. So far, the multi-purpose electric cart "MITRA" has been utilized as a platform for various applications, including transport robots, automated delivery robots, snow removal robots, agricultural robots, and infrastructure inspection robots. What applications would you like to use this mobility platform for? 【Features】 - Independently controlled motors for the rear wheels - Suspension on all four sides - Power steering for front wheel steering - Rust-proof, waterproof, and dust-proof design - Low center of gravity for high driving stability - Capable of climbing and descending slopes of 8° with a load of 100 kg ▼ Many use cases are currently available on the special website! For more details, please refer to the PDF materials or feel free to contact us. ▼ Demonstrations available! If you would like to see the actual machine in operation, please feel free to contact us.
basic information
【Electric Mobility Base Unit Specifications】 ■Length: 920mm (*1) ■Width: 600mm (*1) ■Height: 400mm (*1) ■Vehicle Weight: 89kg (*1) ■Climbing Angle at 100kg Load: 8° ■Continuous Travel Distance: 30km (*1, *2) ■Drive System: Independent dual motors on left and right *1: Dimensions are provisional and adjustable. *2: Continuous travel distance is based on specified test conditions. 【Operation Method】 (*3) ■Remote control operation via radio ■Autonomous driving *3: If you require remote operation or autonomous driving other than via radio control, you can either prepare it yourself or we can provide an introduction from our company. For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Electric Mobility Base Unit Applications】 ■ Legs for transport vehicles ■ Legs for inspection robots ■ Legs for delivery robots ■ Legs for snow removal robots ■ Legs for civil engineering/construction robots ■ Legs for agricultural robots *For more details, please download the PDF or feel free to contact us.
