Efficiency with low-cost CAM and 5-axis machining! BobCADCAM × MX220
Reduce introduction costs while increasing efficiency in processing complex shapes all at once!
Small Fab refers to small-scale, decentralized microfactories. By setting up small labs in offices or research and development centers, it allows for rapid and low-cost prototyping and small-scale production using tools like CAD/CAM, 3D printers, CNC machines, and 3D scanners, without the need for factory-like facilities. It is a flexible and practical manufacturing system directly linked to solving on-site challenges. The 3D digital tools are rarely operated with just one product. This time, we will promote work efficiency by using the 3D CAD/CAM software "BobCADCAM" and the 5-axis machining center "Yornew MX220." Despite its overwhelmingly low price, this low-cost software comes with comprehensive features and offers a perpetual license with zero annual maintenance costs. It achieves significant cost reductions over long-term use while being equipped with rich functionalities. In addition to utilizing this software, using the compact indexing 5-axis machining machine "MX220," which can process multiple complex shapes at once, allows for the automatic generation of tool paths according to indexing angles, enabling efficient chamfering and deburring.
basic information

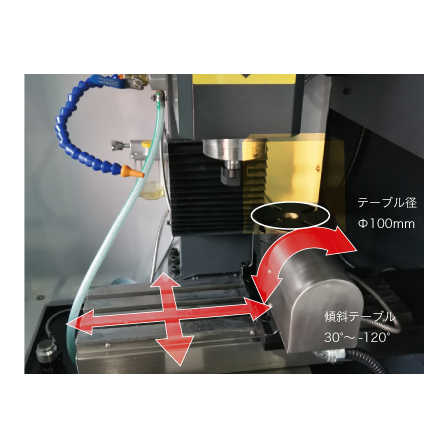

~CADCAM Software BobCADCAM~ [Input/Output Formats] ■Input/Output .bbcd, .igs, .iges, .stp, .step, .stl, .dxf, .dwg, .sat, .3dm <Input Only> .bbcd, .cad, .x_t, .x_b, .sldprt [Module List] ■Express: 2-axis machining ■3AxisPro: High-performance 3-axis machining (high-speed roughing, scalloping, etc.) ■3AxisPremium: High-performance 3-axis machining + tool paths for multi-axis control ■4AxisStandard: Indexing 4-axis machining ■4AxisPro: Simultaneous 4-axis machining ■5AxisStandard: Indexing 5-axis machining ■5AxisPro: Simultaneous 5-axis machining ~Compact 5-Axis Machining Machine Yornew MX220~ ■Working area size (length × width): 460 × 130 mm ■Required floor space (width × depth): 750 mm × 920 mm ■Spindle speed of 2.2 kW high output & maximum 24,000 RPM ■X-axis 230 mm / Y-axis 130 mm / Z-axis 220 mm ■Positioning accuracy / 0.02 mm
Price range
Delivery Time
Model number/Brand name
BobCADCAM × MX220
Applications/Examples of results
- Supports a variety of materials including lightweight metals such as aluminum and brass, as well as resin materials like ABS and acrylic. - Offers a wide range of processing including parts machining and engraving of letters and marks.
Related Videos
Line up（2）
| Model number | overview |
|---|---|
| Small Machining Center MX400 | Motion range (X/Y/Z) mm: 400x500x200 |
| Tabletop CNC Lathe CK140 | Maximum processing diameter: Φ60mm, X-axis movement: 70mm, Z-axis movement: 160mm. |
