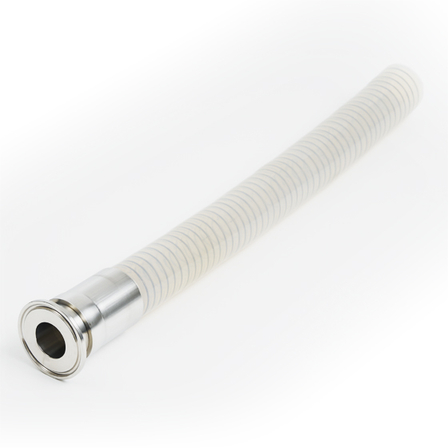

PFA hose with excellent visibility and smooth inner surface, suitable for food, pure water, and chemicals.
A hose that also serves the role of a flow site, integrating visibility, chemical resistance, and flexibility, while pursuing ease of use in the field. Compatible with negative pressure, odor-resistant, and non-stick. TH50.
The exterior is made of non-sticky platinum silicone, while the interior features high smoothness PFA, providing flexibility under various temperature conditions. The most distinctive aspect of the TH50 is its high internal visibility. By combining highly transparent silicone and PFA, it allows for easy observation of fluid conditions. In addition to its usability as a hose, it can also serve the role of a flow sight, making it multi-use. The body reinforcement consists solely of wire, making it primarily suitable for low-pressure applications. However, with PFA as the wetted material, it leverages characteristics such as chemical resistance, heat resistance, mirror-like smoothness, and being tasteless and odorless, providing value in various scenarios. 【Features】 ■ Hybrid hose using platinum silicone on the exterior and Teflon (PFA) on the interior ■ Significantly reduces leaching risk due to the high-strength C-F bond of PFA ■ Complies with USP Class 6 standards ■ Reliable durability through specialized fitting crimping ■ Usable in various processes 【Main Applicable Industries】 ■ Food, brewing, beverages, seasonings ■ Pharmaceuticals, cosmetics, chemical products ■ Electronic materials, semiconductors, ultra-pure water 【Functions】 ■ Negative pressure suction ■ Visibility ■ Oil resistance ■ Non-stick ■ Odor prevention
basic information
【Applicable Standards】 ■ISO: 10993 4-11 ■FDA: 21CFR 177.2600 ■USP: Class 6 ■E.P.: 3.1.9 ■BfR: XV 【Specifications】 ■Fluid contact material: PFA ■Reinforcement material: Steel helix wire ■Outer material: FDA-compliant EPDM ■Operating temperature range: -40℃ to 150℃ 【Connection Parts】 ■Sanitary ferrule ■Male threads, unions, various adapters ■Couplings, couplers ■Flange type Various options available, including separate selection for left and right. ■SS400, SUS304, SUS316L, PV treatment, buff EP treatment Other materials and surface treatments are also available. *For more details, please refer to the PDF materials or feel free to contact us. *If you would like to receive the 'Tōkatsu Techno Latest Catalog Vol.1, Vol.2' by mail, please feel free to contact us through the Tōkatsu Techno website.
Price range
Delivery Time
Model number/Brand name
Transparent platinum silicone + PFA hybrid hose
Applications/Examples of results
【Usage】 ■ Filling lines for various manufacturing processes, aseptic lines, blood/bio products, high-viscosity products, etc. * For more details, please refer to the PDF materials or feel free to contact us. * If you would like to receive the 'Tōkatsu Techno Latest Catalog Vol.1, Vol.2' by mail, please feel free to contact us through the Tōkatsu Techno website.
