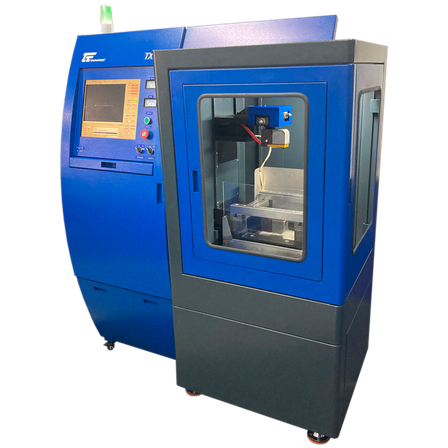

CNC Wire Electrical Discharge Precision Contour Machine [High-Speed Cutting]
★We are accepting trial processing for wire discharge machining★ You can check the cycle time for cutting various metals and processing complex shapes!
The Taiinatech "CNC Wire Electrical Discharge Precision Contour Machine" can process conductive metals at high speeds without being affected by hardness. By merging discharge machining technology with the mechanism of contour machines, it enables the continuous use of molybdenum wire electrodes, achieving high cost performance. 【Reasons to Choose This Product】 ■ Capable of shape processing various metal materials without being affected by hardness! ■ Easier to introduce compared to machining and laser cutting with a competitive price! ■ High cost performance achieved through low running costs and energy efficiency! ■ Total support from safety design and specifications to jigs! ■ Automatic processing with just one button thanks to CNC control! ■ Reduction of burr generation through electrical discharge machining, improving finishing processes! ■ Compact and lightweight design compared to general machine tools! ■ Comprehensive after-sales service system including parts replacement and regular maintenance! As part of your consideration for equipment introduction, we offer free test processing. Please feel free to consult us if you have materials or shapes you would like to process with the "Wire Electrical Discharge Precision Contour Machine."
basic information
For more details, please download the comprehensive catalog or overview materials, or contact Tainatec. 《Contact Information》 Tainatec Co., Ltd. General Reception TEL: 0562-57-4480 Sales Engineering Department, Contact: Nishimura TEL: 070-1629-3846
Price range
Delivery Time
Model number/Brand name
Compact Model DKV Series - Manufactured by Tainatec
Applications/Examples of results
For more details, please download the comprehensive catalog or overview materials, or contact Tainatec. 【Contact】 Tainatec Co., Ltd. TEL: 0562-57-4480
Detailed information
-
It can be used in the process of separating the workpiece created with a metal 3D printer.
-
Precision First cut: ±0.03 mm Multi-cut: ±0.01 mm Surface roughness By processing four times, a surface roughness of approximately Ra1.6 μm can be expected.
-
Complex shapes can be automatically processed through NC control.
-
By devising work clamps, we will improve work efficiency and lead to time savings.
-
It is also possible to process the inner diameter.
-
Disc slicing processing
-
It is also possible to cut long materials that do not fit on the table.
