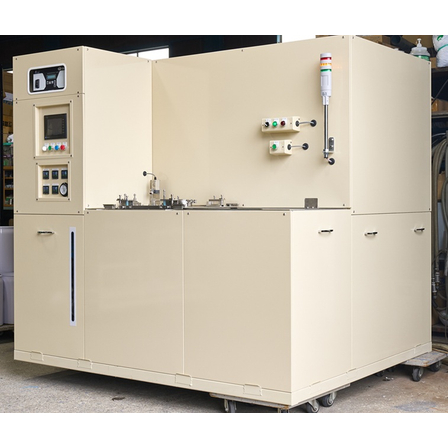

Clean Best ONE
One-bath cleaning machine for advanced fluorine-based cleaning agents.
This is a one-bath type cleaning machine that significantly reduces installation costs and electricity expenses compared to our conventional fluorine-based cleaning machines. It is ideal for users processing 10 to 15 baskets per day. It adopts a drying method that does not use a vacuum pump and is currently under patent application. Additionally, the amount of solvent used is also significantly reduced compared to conventional machines.
basic information
【Specifications】 Main unit dimensions: 1900W × 1650D × 1980H Square basket dimensions: 350W × 300D × 200H Rotating basket dimensions: Φ260 × 300H Ultrasonic: 40 kHz / 600W Distillation heater: 2KW × 2 Batch volume: 164L Weight: Approximately 1100kg
Price range
Delivery Time
Applications/Examples of results
Fluorine-based cleaning agents are too expensive and difficult to use, there is not enough space to install a cleaning machine, I would like to consider switching from the currently used cleaning agents, I want to reduce running costs, I want to maintain cleaning performance while reducing regulations, and the amount of cleaning work is not that large. If you have the above wishes, please consider Clean Best ONE. It is compatible with both square baskets and rotating baskets, and you can choose from various cleaning methods such as ultrasonic and oscillation. Please check the internal mechanism on YouTube.
Related Videos
Recommended products
Distributors
Taisei Klinker Chemical Co., Ltd. has a history of over 40 years as a manufacturer specializing in cleaning machines, and its flagship product, the standard cleaning device "Klinbest," boasts a track record of over 700 units delivered. Specializing in cleaning machines that use non-flammable organic solvents, "Klinbest" is said to be synonymous with vertical sealed cleaning machines. The most distinctive patent, "Ultra Heat," raises the vapor atmosphere temperature of the solvent and heats the workpiece to above the solvent's boiling point, significantly improving cleaning performance, shortening the takt time, and enhancing productivity. The headquarters is located in Tama City, Tokyo, with sales offices nationwide, including the headquarters, the North Kanto Sales Office (Fukaya City, Saitama Prefecture), the Nagano Sales Office (Azumino City, Nagano Prefecture), and the Sendai Sales Office. The factory is located in Fukaya City, Saitama Prefecture, and cleaning tests can be conducted at a nearby lab.
