IP68 PLASTIC ENCLOSURE with VENTILATION PLUG - WGV series

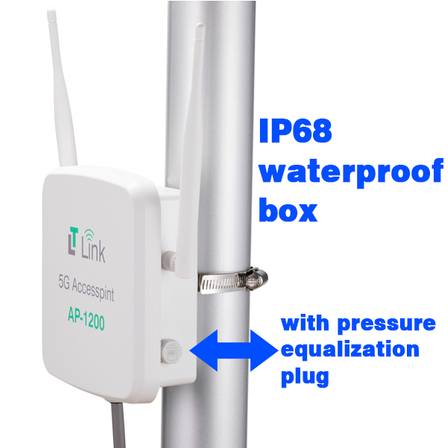

An outdoor box with an internal pressure adjustment vent that prevents deformation of the box due to thermal expansion.
IP68 high performance plastic box protected from immersion as long as 24 hours at 1m depth where external (surroundings) and internal (inside box) pressure are different. ASA material is resistant to deterioration and discoloration from ultraviolet rays. Perfect for use as outdoor communication or network devices. Self-tapping captive screws which are able to lock into a pre-drilled hole and provide a secure hold for fastening the cover. Please drive the self-tapping captive screws for cutting a thread into the holes at first so that the cover and body can be secured together properly. Equipped with the ventilation plug for enabling pressure equalization. Ventilation plug protects the enclosure from deformation by equalizing the pressure in environments where there are differences between high daytime and low nighttime temperatures, as well as venting the gas generated within. Maintains an IP68 protection class with the ventilation plug which prevents ingress of water while allowing water vapor molecules to diffuse through the microporous membrane. By using the optional mounting accessories, it can be installed on walls and poles with ease. Optional terminal blocks, WTB series can be installed onto the existing bosses inside the WG series box without additional processing or customization, hence can also function as a terminal junction box.
basic information
【Specifications】 Cover: ASA weather-resistant resin Body: ASA weather-resistant resin Gasket: Silicone rubber Mounting screws (captive type): Stainless steel *Weather-resistant resin refers to a type of resin that is less likely to undergo deformation, discoloration, or deterioration when used outdoors. 【Features】 Protection class: IP68 (24 hours / 1m depth) Operating temperature: -30°C ~ +60°C Material: UV-resistant ASA UL94HB Color: Off-white / Similar to Munsell N8.75 6 new sizes have been added to expand lineup to a total of 16 different sizes.
Price information
Standard price: ¥1,960 to ¥13,390
Price range
P1
Delivery Time
P1
Regularly stocked
Model number/Brand name
TAKACHI ELECTRONICS ENCLOSURE - WGV Series
Applications/Examples of results
Communication equipment Network equipment Wireless equipment LoRa gateway Access point Controller Sensor housing box Data logger GPS equipment Connection box Relay box
Related Videos
catalog（12）
Download All Catalogs
Recommended products
Distributors
TAKACHI is a manufacturer of cases, boxes, and racks for industrial and commercial use, including electronic devices, control equipment, and communication devices. We offer a wide range of approximately 48,000 general-purpose enclosures, including aluminum cases, metal cases, plastic cases, aluminum diecast boxes, stainless steel boxes, waterproof boxes, battery boxes, battery holders, shelf boards for 19-inch racks, rack cases, rack panels, and subracks, along with customization services for additional processing to satisfy various customer needs.
