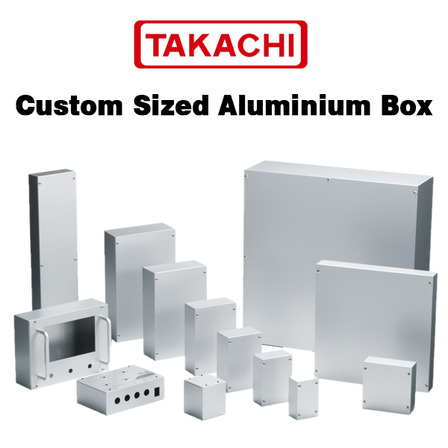

Manufactured to specified dimensions in 1mm increments! Free size aluminum case with cover.
A custom-sized enclosure can be manufactured in 1mm increments! An aluminum case with a simple flat cover.
This is a simple aluminum chassis with a sheet metal structure that allows for custom sizes specified in 1mm increments. The dimensions for width, depth, and height are flexible, and original aluminum enclosures can be produced with a short lead time of shipping on the fifth working day. The cover is easy to attach and detach, making it a versatile case that facilitates equipment integration and maintenance. The interior is conductive, allowing for grounding and earthing. It can be used for a wide range of applications, including switch boxes, touch panel control boards, controllers, wiring junction boxes, and vacuum tube amplifier chassis. Size specification range: Width and depth dimensions can be specified from 60 to 400mm, and height dimensions can be specified from 20 to 120mm in 1mm increments. Production lead time: Shipping on the fifth working day after order confirmation. *This applies even if hole processing is included. *Production can be done from a single unit.
basic information
[Material/Composition] Cover/Chassis: Aluminum plate A1100P t1.2mm Mounting screws: Truss M3×5mm, iron, nickel-plated
Price information
Free size production price: ¥5,300 to ¥22,410 *Prices are determined by size in the price list. Please refer to the PDF catalog for the price list.
Price range
P1
Delivery Time
P3
Standard delivery time: 5 days after order confirmation.
Model number/Brand name
Takachi Electric Industrial TCF Series
Applications/Examples of results
【Uses】Widely applicable for industrial, prototyping, and DIY purposes! - Controller - Switch box - Electrical junction box - Touch panel operation device - Vacuum tube amplifier chassis - Electronic projects
