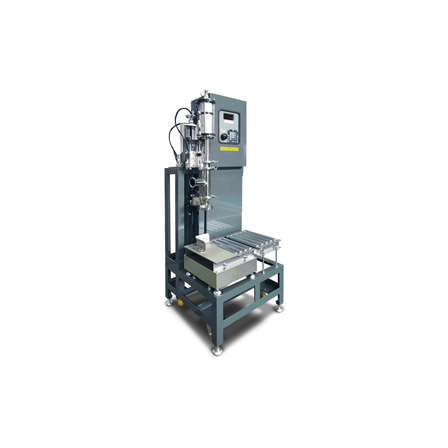

[Production Example] Liquid Filling Machine with Riveting Device
This is a case study of installing an air-driven capping machine downstream of a pressure-resistant explosion-proof type semi-automatic filling machine for pails.
This is a case study of installing an air-driven semi-automatic crimping machine downstream of a pressure-resistant explosion-proof type drum can semi-automatic filling machine. The crimping machine is suspended from a balancer, and when it is set in the designated position and the switch is operated, the crimping of the cap is automatically performed by an air cylinder. In this case study, the cap is set manually, but we can also propose an automatic lift crimper for an automated transport line.
basic information
Delivery Specifications 1. Liquid Filling Machine Weighing/Measurement: 30kg/10g Contact Parts Material: Stainless Steel (gaskets made of PTFE) Nozzle Shape: Long Nozzle (suitable for foaming) Compatible Containers: Pail Explosion-proof Performance: Exd2BT4 Accessories: Free roller on the platform, movable casters, data logger 2. Riveting Machine Drive Method: Air-driven Operation Method: Foot switch Accessories: Free roller on the platform, balancer
Price information
It varies depending on the specifications, so please feel free to contact us.
Delivery Time
Model number/Brand name
TFM-30 Series
Applications/Examples of results
【Delivery Fields】 Chemical products related Paint-related Plants with other hazardous areas, etc.
catalog（1）
Download All Catalogs
Recommended products
Distributors
Our company has a proven track record in various fields, including general weighing instruments, pressure-resistant explosion-proof liquid filling machines and filling systems, liquid and powder filling and weighing, and image processing systems. Since we handle hard design using CAD, control panel design and manufacturing, PLC software development, assembly, adjustment, and maintenance all in-house, we can provide flexible products and services tailored to our customers' needs. **Main Products** Digital platform scales Pressure-resistant explosion-proof weighing instruments Pressure-resistant explosion-proof liquid filling machines and filling systems FIBC scales (FIBC filling devices) Coil weighing machines Truck scales Portable vehicle weight scales Tank scales and hopper scales LP gas filling machines Sorting and image processing systems **Delivery Fields and Categories** Chemical industry-related, chemical products-related, steelmaking-related, agriculture sector, livestock sector, etc.
