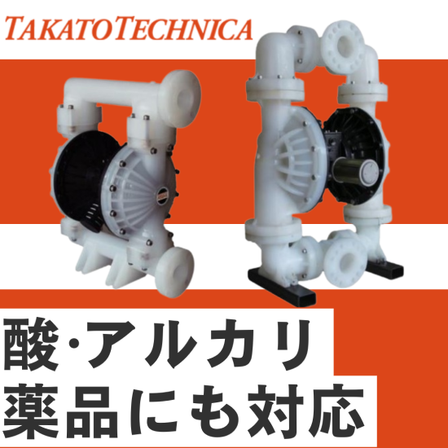

Air-driven diaphragm pump for acid and alkali chemical applications in university research.
Compatible with various chemical solutions such as acids, alkalis, high-viscosity slurries, etc. No worries about liquid leakage.
In university research fields, especially in experiments, the safe and accurate handling of chemical solutions is essential. When dealing with corrosive chemicals or high-viscosity liquids, leaks and pump failures increase the risk of delays and safety hazards in experiments. Our air-driven diaphragm pump is designed to address these challenges. 【Usage Scenarios】 - Experiments using corrosive chemicals and organic solvents - Transfer of high-viscosity and slurry-like liquids - Experiments where avoiding leaks is crucial 【Benefits of Implementation】 - Reduces the risk of leaks and enhances the safety of experiments - Accommodates a variety of chemical solutions, expanding the scope of experiments - Easy maintenance improves experimental efficiency
basic information
【Features】 - Capable of transferring high-viscosity slurries - No leakage of transferred fluid to the outside - Self-priming from dry running is possible, and durability during dry running is high - Easy control with a safe structure - Diverse material models 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price range
Delivery Time
Applications/Examples of results
For more details, please check the PDF document or feel free to contact us.
Line up（10）
| Model number | overview |
|---|---|
| AODD-15-PP-TPT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection diameter 1/4 (8A), connection diameter Rc male thread 15A, 20A. |
| AODD-25-PP-TPT | Maximum discharge capacity 157L/min, maximum particle diameter for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-PP-TPT | Maximum discharge capacity 385L/min, maximum particle diameter for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-PP-TPT | Maximum discharge capacity 587 L/min, maximum particle size for transfer 6 mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-PP-TPT | Maximum discharge capacity 1060L/min, maximum particle diameter for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
| AODD-15-KY-TTT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection port size 1/4 (8A), connection port Rc male thread 15A, 20A. |
| AODD-25-KY-TTT | Maximum discharge capacity 157L/min, maximum particle size for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-KY-TTT | Maximum discharge capacity 385L/min, maximum particle size for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-KY-TTT | Maximum discharge capacity 587L/min, maximum particle diameter for transfer 6mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-KY-TTT | Maximum discharge capacity 1060L/min, maximum particle size for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
