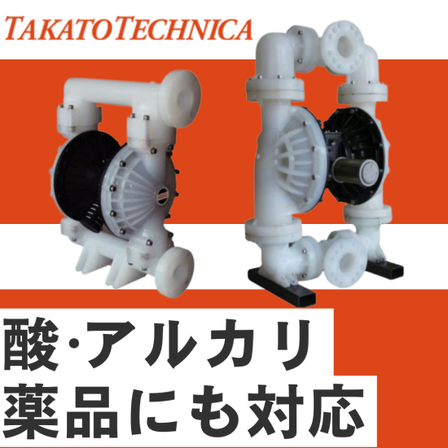

Lightweight resin air-driven diaphragm pump for cosmetics manufacturing
Acid and alkali resistant! No worries about liquid leakage! Ideal for mixing cosmetic ingredients.
In the cosmetics manufacturing industry, precise mixing of raw materials and appropriate filling into containers are essential to maintain product quality. In particular, to prevent the separation or deterioration of blended components, it is crucial to minimize the risk of liquid leakage and ensure high compatibility with materials. Our air-driven diaphragm pump addresses these challenges and enables safe and efficient mixing of raw materials. 【Usage Scenarios】 - Mixing of cosmetic raw materials - Transfer of corrosive chemical solutions - Transfer of high-viscosity raw materials 【Benefits of Implementation】 - Reduced risk of liquid leakage - Compatibility with a variety of raw materials - Improved maintainability
basic information
【Features】 - Capable of transferring high-viscosity slurries - No leakage of transferred fluid to the outside - Self-priming from dry running is possible, and durability during dry running is high - Easy control with a safe structure - Various material models available 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price range
Delivery Time
Applications/Examples of results
For more details, please check the PDF document or feel free to contact us.
Line up（10）
| Model number | overview |
|---|---|
| AODD-15-PP-TPT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection diameter 1/4 (8A), connection diameter Rc male thread 15A, 20A. |
| AODD-25-PP-TPT | Maximum discharge capacity 157L/min, maximum particle diameter for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-PP-TPT | Maximum discharge capacity 385L/min, maximum particle size for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-PP-TPT | Maximum discharge capacity 587 L/min, maximum particle size for transfer 6 mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-PP-TPT | Maximum discharge capacity 1060L/min, maximum particle diameter for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
| AODD-15-KY-TTT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection port size 1/4 (8A), connection port Rc male thread 15A, 20A. |
| AODD-25-KY-TTT | Maximum discharge capacity 157L/min, maximum particle diameter for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-KY-TTT | Maximum discharge capacity 385L/min, maximum particle size for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-KY-TTT | Maximum discharge capacity 587 L/min, maximum particle diameter for transfer 6 mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-KY-TTT | Maximum discharge capacity 1060L/min, maximum particle diameter for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
