Heat-curing ink (carbon, peel coat) compatible
Used in areas where durability is important! Protects against soldering, unmounted parts, dirt, and scratches.

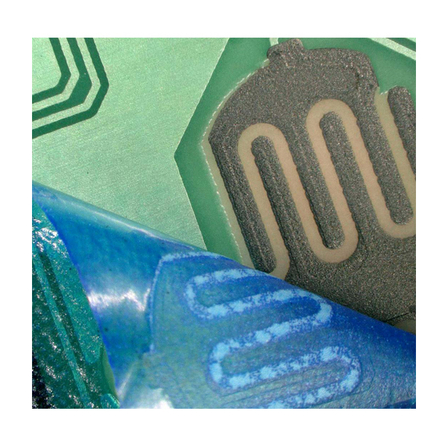

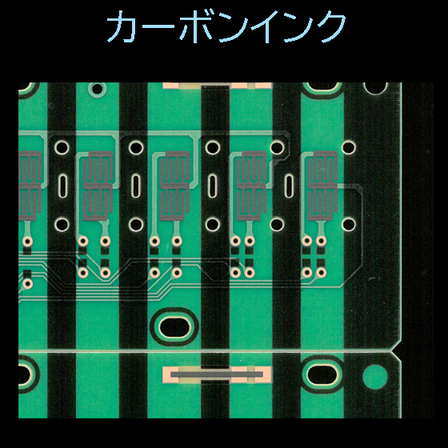

Our company also supports printing with thermosetting inks (carbon, peel coat). Carbon is a printed circuit board that uses carbon paste ink, and by applying it to the land area, it becomes a durable conductor. Peel coat, on the other hand, is a removable film material, and when performing flow soldering, it is printed on the land area to protect against soldering in later processes, as well as to prevent contamination and scratches in unmounted areas. 【Features】 <Carbon> ■ Becomes a durable conductor by applying it to the land area ■ Used in buttons and switches that are repeatedly pressed, such as remote controls and musical instruments (keyboards), where durability is important <Peel Coat> ■ Removable film material ■ Printed on the land area to protect against soldering and to prevent contamination and scratches in unmounted areas *For more details, please feel free to contact us.
basic information
For more details, please feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please feel free to contact us.
Distributors
Our company specializes in etching processing, electroforming, and the production of printed circuit boards, with numerous factories located nationwide. We offer a wide range of services, from texture processing for mass production molds such as etching, sandblasting, Ceracib, and Ceracoat, to texture processing for prototypes and molded products like Banatone and Realtech. Please feel free to contact us with any inquiries.
