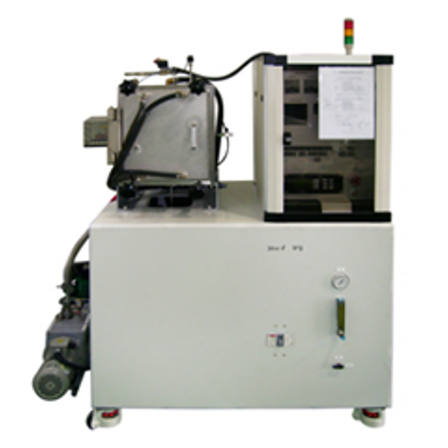

Metal furnace <Thoroughly eliminate oxygen, carbon, and moisture>
Towards true high-purity oxide and nitride materials. Free control from vacuum to reducing atmosphere, achieving degassing, decarbonization, and high-purification processes all in one machine.
The "metal furnace" we handle achieves stable reproduction of degassing behavior through high-precision temperature control (up to 1800°C) and automatic exhaust control. It addresses challenges such as the inability to efficiently remove adsorbed water, CO2, and residual organic substances generated from within the sample during high-temperature processing, as well as the lack of lab-scale equipment that can reliably implement high-purity processes. Despite its compact size, it features a structure that allows for scaling up to larger furnaces. 【Features】 - Eliminates contamination from carbon sources due to its metal heater and metal chamber structure. - Supports high vacuum operation (10^-3 to 10^-5 Pa) and switching to a reducing atmosphere (H₂/Ar/N₂). - Achieves stable reproduction of degassing behavior through high-precision temperature control (up to 1800°C) and automatic exhaust control. - Optimized heat profile for high purification of oxides and nitrides, and reduction of residual C and O. - Compact yet designed for scalability to larger furnaces (manufactured by Thermonik ENG). *For more details, please feel free to contact us.
basic information
【Regarding such issues】 ■ In ultra-high purity oxide powders and ceramic materials, ppm-level C, H, and O impurities affect physical properties. ■ Carbon contamination and reduction reactions from furnace materials cannot be avoided in conventional electric furnaces. ■ It is difficult to efficiently remove adsorbed water, CO2, and residual organic substances generated from within the sample during high-temperature processing. ■ There are few lab-scale devices that can reliably implement high-purity processes. *For more details, please feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■Decarbonization and degassing treatment of high-purity powders and ceramics such as SiO2, Al2O3, ZrO2, HfO2, La2O3, etc. ■Pre-treatment/impurity removal of oxide target materials ■Purification of nitride powders and reduction of residual oxygen (such as Si3N4, AlN, BN, etc.) *For more details, please feel free to contact us.
catalog（1）
Download All Catalogs
Distributors
Our company integrates three technologies: "electricity," "equipment," and "chemistry," using our unique know-how to develop innovative heating furnaces and other equipment. We handle various electric furnaces (heating furnaces) such as carbon furnaces, multi-atmosphere furnaces, metal furnaces, and chlorine furnaces, leveraging our proprietary high-temperature electric furnace technology. We are not just an equipment manufacturer; we are a strategic development partner that supports innovative manufacturing with advanced heating, looking ahead to the standards of the next decade alongside our customers.
