Carbon furnace | Suitable for carbonization, graphitization, and high-temperature sintering up to 3000℃.
Supports high-temperature sintering up to 3000℃. Assists in carbonization, graphitization, and debinding processes in a low-oxygen atmosphere.

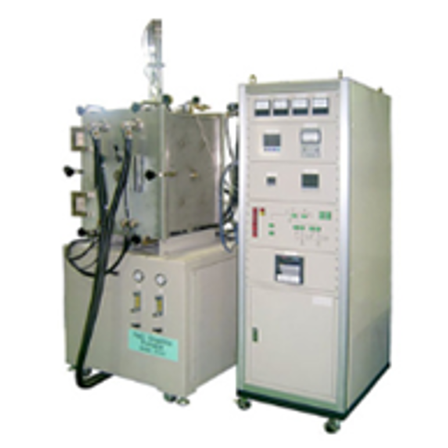

The carbon furnace is an electric furnace designed to handle high-temperature processes exceeding 2000°C, such as carbonization treatment, graphitization treatment, high-temperature sintering, debinding treatment, powder metallurgy, and ceramics sintering. By using carbon materials for the in-furnace heater, it can accommodate high-temperature treatments from atmospheric pressure up to a maximum of 3000°C. Additionally, after vacuuming, it can be replaced with inert gases such as Ar or N2, allowing for sintering while suppressing the oxidation of materials. It is particularly suitable for customers with the following challenges: ■ Wanting to perform high-temperature sintering above 2000°C ■ Wanting to sinter carbon materials, C/C composites, SiC, and ceramics ■ Wanting to carry out carbonization and graphitization treatment consistently after debinding ■ Wanting to process in atmospheres containing Ar, N2, vacuum, or H2 as needed ■ Wanting to sinter in a low-oxygen atmosphere that suppresses oxidation ■ Wanting to consider everything from lab tests to mass production equipment We design and manufacture custom carbon furnaces according to the size of the materials being processed, processing temperature, atmosphere gas, target oxygen concentration, heating patterns, and cooling conditions.
basic information
【Features】 ■ Supports high-temperature firing up to 3000℃ class ■ Capable of processing in atmospheric pressure to vacuum and inert atmospheres ■ Compatible with Ar, N2, vacuum replacement, and H2-containing gases as needed ■ Can be fired in a low-oxygen atmosphere to suppress oxidation ■ Suitable for carbonization, graphitization, degreasing, sintering, and powder metallurgy applications ■ Custom design for furnace dimensions, processing capacity, gas systems, and safety measures ■ Can accommodate research and development, trial production, and mass production 【Compatible Atmospheres】 ■ Vacuum ■ Ar ■ N2 ■ Ar/N2 replacement ■ H2-containing gas *Conditions need to be confirmed Other processing conditions can be discussed as needed 【Compatible Temperatures】 ■ Up to 3000℃ class *Specifications may vary depending on furnace size, processed materials, atmosphere, and heater configuration.
Price information
*The price may vary depending on the device specifications, so please feel free to contact us for more details.
Delivery Time
Applications/Examples of results
【Challenges】 ■ Requires high-temperature treatment above 2000°C ■ Want to examine the conditions for carbonization and graphitization ■ Want to sinter while suppressing oxidation ■ Want to process in vacuum, inert gas, or H2-containing gas ■ Standard products do not match the furnace dimensions or processing conditions ■ Want to have consistent consultation from research and development to mass production equipment 【Examples of Applications】 ■ Carbon material carbonization and graphitization ■ High-temperature sintering of SiC and ceramics ■ Sintering of powder metallurgy materials ■ Sintering of battery materials and anode materials ■ Heat treatment of C/C composite materials ■ Carbonization treatment after degreasing ■ Prototype and mass production equipment for high-temperature atmosphere furnaces
catalog（3）
Download All Catalogs
Recommended products
Distributors
Our company integrates three technologies: "electricity," "equipment," and "chemistry," using our unique know-how to develop innovative heating furnaces and other equipment. We handle various electric furnaces (heating furnaces) such as carbon furnaces, multi-atmosphere furnaces, metal furnaces, and chlorine furnaces, leveraging our proprietary high-temperature electric furnace technology. We are not just an equipment manufacturer; we are a strategic development partner that supports innovative manufacturing with advanced heating, looking ahead to the standards of the next decade alongside our customers.
