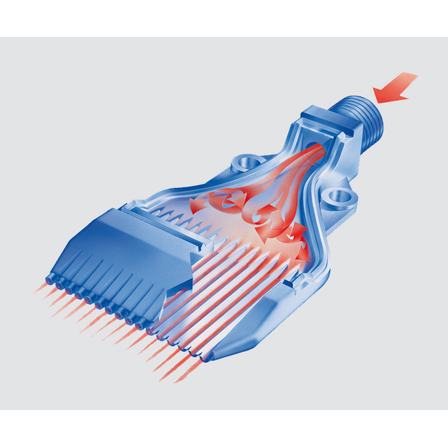

Air nozzle manufactured by Rehiller for automotive painting.
Achieve cost reduction and quality improvement in the painting process! Low noise, energy-saving, high-performance air nozzle.
In the automotive painting industry, the drying process before painting is a crucial factor that affects quality, as it ensures uniform drying of the paint and removal of foreign substances. In particular, uneven paint application and the presence of foreign materials can compromise the finish of the product, leading to increased costs due to rework. The air nozzle manufactured by Lehner addresses these challenges by providing low noise and energy efficiency while achieving high-quality drying and foreign substance removal. 【Usage Scenarios】 - Drying process before painting - Removal of foreign substances in the painting booth - Cleaning of painted surfaces 【Benefits of Implementation】 - Improvement in painting quality - Reduction in drying time - Decrease in energy costs
basic information
【Features】 - Low noise design - Energy saving - Powerful impact force - Uniform air flow - Approved by OSHA, FDA, and (EC) No. 1935/2004 【Our Strengths】 Tick Corporation is committed to providing optimal products to improve production efficiency, enhance cost efficiency, improve quality, and contribute to environmental conservation. We offer extensive knowledge of Rehiller air nozzles and provide the best solutions tailored to our customers' needs.
Price information
Please feel free to contact us.
Delivery Time
Model number/Brand name
Rehira Multi-Channel Jet
Applications/Examples of results
【Automotive Industry】 Cleaning of machining machines and reference surfaces (oil and chips) Draining and drying of parts and washing machines Cleaning of reference surfaces and chips in line processing Draining and drying of side moldings Draining and drying of bumpers Chemical cleaning of parts Cleaning of reference surfaces and blowing off debris from die-casting and burr-removal machines Blowing off die-cast metal Draining and drying after water washing in painting booths 【Food & Packaging】 Blowing off products on conveyor belts Injecting air for opening packaging bags Drying of moisture-laden packaging materials (such as shrink packs) before labeling for weight and price Blowing off and pushing defective products off the conveyor Drying of manufacturing/packaging equipment (mainly for electronic components) Blowing off and drying bottles and cans before filling Drying of bottles and cans before labeling/printing and after filling 【Metal Processing】 Cleaning of casting molds and press molds Cleaning of drills, lathes, and milling machines Blowing off final products removed from molds Blowing off chips and coolant from final products Blowing off and cleaning parts before the cleaning process Blowing off, drying, and cooling parts after cleaning or degreasing processes Cleaning before and after the plating process Cooling tools such as drills with air instead of emulsion *The applications/examples of achievements are just a small part.*
Related Videos
Line up（19）
| Model number | overview |
|---|---|
| FL-600E | Material: POM Air consumption: 17㎥/h@0.2MPa Impact force: 2N@0.2MPa Noise level: 70db(A)@0.2MPa ***The world's only product that can be equipped with an orifice cover*** |
| FL-600S | Material: POM (without pigment) Air consumption: 17 m³/h @ 0.2 MPa Impact force: 2 N @ 0.2 MPa Noise level: 70 dB(A) @ 0.2 MPa |
| FL-600PP | Material: PP Air consumption: 17㎥/h@0.2MPa Impact force: 0.8N@0.2MPa Noise level: 65db(A)@0.2MPa |
| FL-600H | Material: POM Air consumption: 8.5㎥/h@0.2MPa Impact force: 0.8N@0.2MPa Noise level: 65db(A)@0.2MPa |
| FL-600A | Material: Aluminum Air consumption: 18㎥/h@0.2MPa Impact force: 2.4N@0.2MPa Noise level: 76db(A)@0.2MPa |
| FL-600ST | Material: SUS316L Air consumption: 13㎥/h@0.2MPa Impact force: 2N@0.2MPa Noise level: 70db(A)@0.2MPa |
| FL-600STW | Material: SUS316L Air consumption: 32㎥/h@0.2MPa Impact force: 4.2N@0.2MPa Noise level: 98db(A)@0.2MPa |
| FL-600SY | Material: SUS316L Air consumption: 9㎥/h@0.2MPa Impact force: 1.2N@0.2MPa Noise level: 71db(A)@0.2MPa |
| FL-600FC | Material: Iron/PVC Air consumption: 27㎥/h@0.2MPa Impact force: 3.7N@0.2MPa Noise level: 83.5db(A)@0.2MPa |
| FL-600FK | Material: Brass/PVC Air consumption: 15㎥/h@0.2MPa Impact force: 2.3N@0.2MPa Noise level: 77.5db(A)@0.2MPa |
| FL-600FE | Material: Brass/PVC Air consumption: 31㎥/h@0.2MPa Impact force: 4.3N@0.2MPa Noise level: 86db(A)@0.2MPa |
| FL-600FM | Material: Brass/PVC Air consumption: 100㎥/h@0.2MPa Impact force: 11.5N@0.2MPa Noise level: 91.5dB(A)@0.2MPa |
| FL-600R | Material: ABS Air consumption: 16㎥/h@0.2MPa Impact force: 2.2N@0.2MPa Noise level: 74db(A)@0.2MPa |
| FL-600Z | Material: Zinc Air consumption: 18㎥/h@0.2MPa Impact force: 2.1N@0.2MPa Noise level: 79db(A)@0.2MPa |
| FL-600B | Material: Brass Air consumption: 18㎥/h@0.2MPa Impact force: 2.1N@0.2MPa Noise level: 79db(A)@0.2MPa |
| FL-600M4 | Material: SUS316L Air consumption: 2.0 m³/h @ 0.2 MPa Impact force: 0.4 @ 0.2 MPa Noise level: 63 dB(A) @ 0.2 MPa |
| FL-600M5 | Material: SUS316L Air consumption: 4.2㎥/h@0.2MPa Impact force: 0.7N@0.2MPa Noise level: 70db(A)@0.2MPa |
| FL-600M | Material: Brass/POM Air consumption: 9.0㎥/h@0.2MPa Impact force: 1.1N@0.2MPa Noise level: 77db(A)@0.2MPa |
| FL-600RM | Material: Brass/PVC Air consumption: 157㎥/h@0.2MPa Impact force: 12.8N@0.2MPa Noise level: 93db(A)@0.2MPa |
catalog（12）
Download All Catalogs
CAD data（30）
| Model number | overview | File |
|---|---|---|
| FL-600E | Multichannel Jet Free distribution of CAD drawings (2D and 3D) for the bestselling air nozzle, FL-600E, has begun. |
|
| FL-600E | Multichannel Jet Free distribution of CAD drawings (2D and 3D) for the bestselling air nozzle, FL-600E, has begun. |
|
| FL-600S | Free distribution of the CAD drawing (2D) for the multi-channel jet (air nozzle) FL-600S has begun. |
|
| FL-600PP | Free distribution of the CAD drawing (2D) for the multi-channel jet (air nozzle) FL-600PP has begun. |
|
| FL-600H | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600H has begun. |
|
| FL-600H | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600H has begun. |
|
| FL-600A | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600A has begun. |
|
| FL-600A | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600A has begun. |
|
| FL-600ST | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600ST has begun. |
|
| FL-600ST | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600ST has begun. |
|
| FL-600STW | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600STW has begun. |
|
| FL-600STW | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600STW has begun. |
|
| FL-600SY | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600SY has begun. |
|
| FL-600SY | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600SY has begun. |
|
| FL-600FC | Free distribution of the CAD drawing (2D) for the multi-channel jet (air nozzle) FL-600FC has begun. |
|
| FL-600FK | Free distribution of the CAD drawing (2D) for the multi-channel jet (air nozzle) FL-600FK has begun. |
|
| FL-600FE | Free distribution of the CAD drawing (2D) for the multi-channel jet (air nozzle) FL-600FE has begun. |
|
| FL-600FM | Free distribution of CAD drawings (2D) for the multi-channel jet (air nozzle) FL-600FM has begun. |
|
| FL-600R | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600R has begun. |
|
| FL-600R | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600R has begun. |
|
| FL-600Z | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600Z has begun. |
|
| FL-600Z | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600Z has begun. |
|
| FL-600B | Free distribution of the CAD drawing (2D) for the multi-channel jet (air nozzle) FL-600B has begun. |
|
| FL-600M4 | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600M4 has started. |
|
| FL-600M4 | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600M4 has started. |
|
| FL-600M5 | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600M5 has begun. |
|
| FL-600M5 | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600M5 has begun. |
|
| FL-600M | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600M has begun. |
|
| FL-600M | Free distribution of CAD drawings (2D and 3D) for the multi-channel jet (air nozzle) FL-600M has begun. |
|
| FL-600RM | Free distribution of the CAD drawing (2D) for the multi-channel jet (air nozzle) FL-600RM has begun. |
|
