Flexible elastic foamed rubber insulation material 'Armaflex Class 0'
Excellent flexible elastic foam rubber insulation that contributes to dew prevention and clean air.
ArmaFlex Class 0 is a flexible elastic foam insulation material with a closed-cell structure developed for HVAC (heating, ventilation, and air conditioning) applications. Its high vapor resistance and low thermal conductivity help suppress the risk of condensation and corrosion under insulation (CUI), contributing to long-term energy-saving operations. Additionally, it has excellent fire performance that meets Class 0 rating according to BS476 Part 6 and Part 7, and it has also obtained FM certification. Furthermore, the sheet material incorporates the antimicrobial agent Microban, which helps inhibit the growth of mold and bacteria, contributing to the maintenance of a hygienic air environment. It is a high-performance insulation material suitable for condensation prevention, insulation, and refrigeration applications in air conditioning and cooling equipment.
basic information

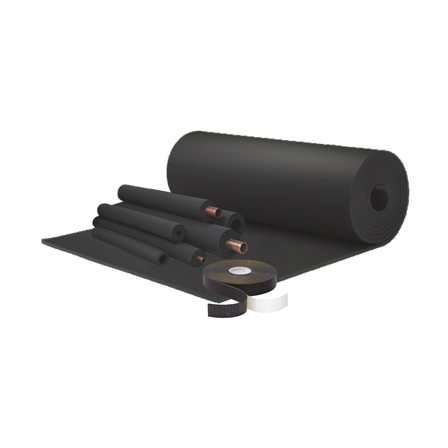

Material: Soft elastic foam rubber (closed-cell structure) Color: Black Temperature range: -50℃ to +105℃ Thermal conductivity: -20℃: 0.032 W/m·K 0℃: 0.034 W/m·K 25℃: 0.036 W/m·K Water vapor diffusion resistance coefficient: μ > 10,000 Moisture permeability coefficient: ≤ 1.87 ng/(m²·s·Pa) Water absorption rate: ≤ 0.2 vol% Vacuum water absorption rate: ≤ 0.5% Fire performance: BS476 Part 6 & Part 7 Class 0 compliant UL94 V-0 FM4924 certification obtained No burning droplets Antibacterial performance: Built-in Microban (sheet material) Environmental performance: GWP zero, ODP zero, RoHS compliant Health considerations: Formaldehyde-free, low VOC, GREENGUARD Gold certified Product shapes: Tube, roll, cut sheet, insulating tape
Price range
Delivery Time
Model number/Brand name
Armaflex Class0
Applications/Examples of results
Applications Insulation for piping of heating, ventilation, and air conditioning (HVAC) systems Condensation prevention for chilled water and cooling water piping Insulation for refrigeration and cold storage equipment Insulation for ducts, tanks, elbows, fittings, and flanges Energy-saving measures for commercial facilities, factories, and public facilities Insulation for equipment requiring a clean and hygienic air environment Examples of Implementation and Use Air conditioning piping and ducts in office buildings HVAC systems in commercial facilities and hotels Chilled water systems in hospitals and medical facilities Cooling piping in data centers Refrigeration and cold storage equipment in food factories and cold storage warehouses Utility piping in manufacturing plants Air conditioning systems in schools, public facilities, and transportation infrastructure
